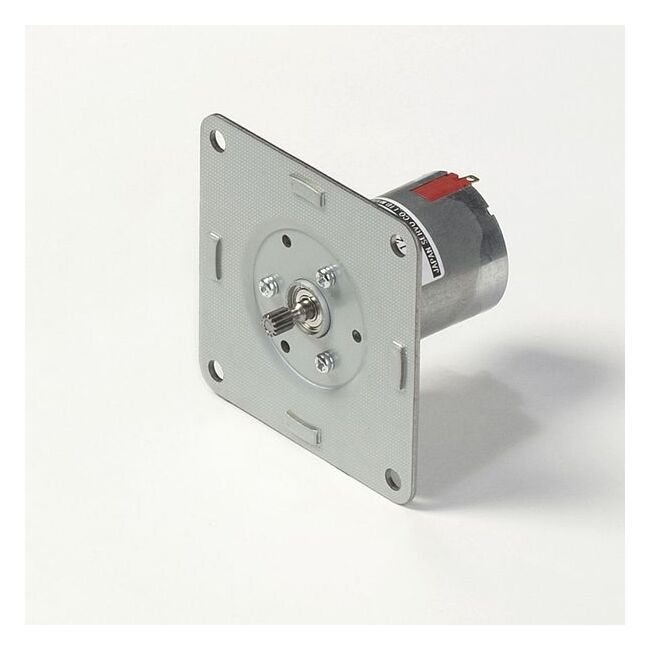

DMN37 8DG Series DC Brush Motors
DMN37 8DG Series DC Brush Motors
SKU:PER-c0e019
Reliable DMN37 8DG Series motors built for continuous operation, high output, and low noise. Customizable for diverse needs.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DMN37 8DG Series DC Brush Motors
$299.99
Quantity: 1
Claim Your Seller Account
DMN37 8DG Series DC Brush Motors
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN37 8DG Series DC Brush Motors are engineered for exceptional performance and durability. Offering continuous operation with a long life span of over 1 million cycles, these motors feature an optimized brush design for reliability. With high heat dissipation, heat resistance, and a large diameter output shaft, they deliver a high radial load capacity and low noise operation. The motor comes with various gear heads and reduction ratios to cater to diverse needs. Additionally, it can be customized to meet specific requirements, making it an ideal choice for institutional buyers seeking efficiency and reliability.
Product Specifications
Additional Information 0
DMN37 8DG Series DC Brush Motors with Continuous Operation | DMN37 8DG Series DC Brush Motors with Continuous Operation (DMN37B8HPA) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Bolt
M5 x 50 mm | M5 x 1.967 in
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
6
Specifications L1
86.7 mm | 3.413 in
Specifications L2
32 mm | 1.260 in
Specifications Note
When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN37B8HPB (Pinion shaft motor)8DG_ (Gearbox)
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
10.2 oz·in | 0.072 N·m
Specifications Series
DMN37
Specifications Speed
783 r/min
Specifications Voltage
12 V
Specifications Weight
780 g | 1.7 lb
