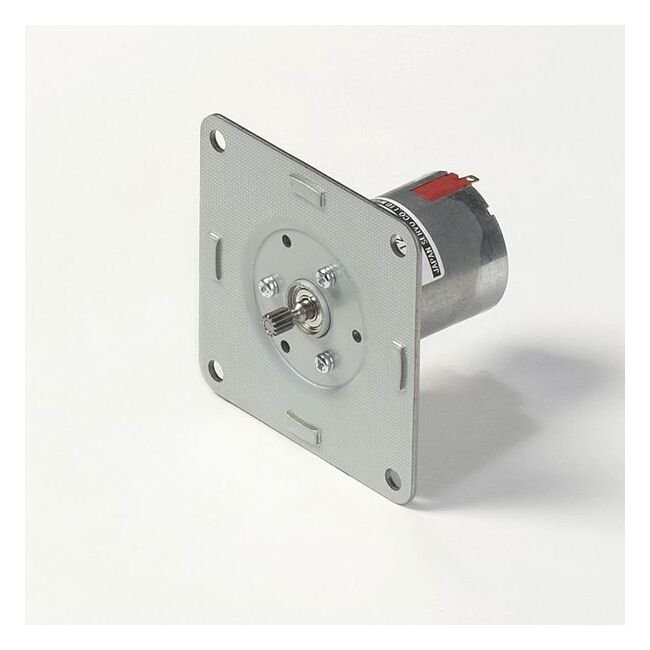

DMN37 8DG Series DC Brush Motors with Continuous Operation - High Output & Low Noise
DMN37 8DG Series DC Brush Motors with Continuous Operation - High Output & Low Noise
SKU:PER-d2e04a
DMN37 8DG Series DC Brush Motors: Durable, efficient, and reliable choice for high-performance applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DMN37 8DG Series DC Brush Motors with Continuous Operation - High Output & Low Noise
$299.99
Quantity: 1
Claim Your Seller Account
DMN37 8DG Series DC Brush Motors with Continuous Operation - High Output & Low Noise
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN37 8DG Series DC Brush Motors are designed for durability and efficiency, boasting a continuous operating life of 3000 hours. With optimized brush design for over 1 million cycles, these motors offer high heat dissipation, resistance, and output. Featuring high radial load capacity, low noise, and increased insulation, these motors come with a variety of gear heads and reduction ratios. Ideal for institutions seeking reliability and performance.
Product Specifications
Additional Information 0
DMN37 8DG Series DC Brush Motors with Continuous Operation | DMN37 8DG Series DC Brush Motors with Continuous Operation (DMN37B8HPA) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Bolt
M5 x 50 mm | M5 x 1.967 in
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
75
Specifications L1
86.7 mm | 3.413 in
Specifications L2
32 mm | 1.260 in
Specifications Note
When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN37B8HPB (Pinion shaft motor)8DG_ (Gearbox)Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
114 oz·in | 0.80 N·m
Specifications Series
DMN37
Specifications Speed
63 r/min
Specifications Voltage
12 V
Specifications Weight
780 g | 1.7 lb
