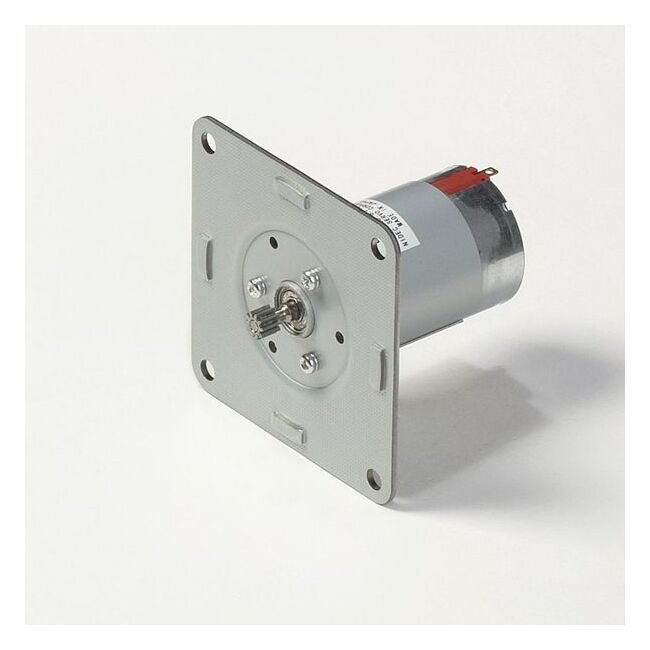

DMN37 8DGF Series 80x80mm DC Brush Motor
DMN37 8DGF Series 80x80mm DC Brush Motor
SKU:PER-340978
Reliable DMN37 8DGF Series DC Brush Motors with high output, durability, and customization options. Ideal for demanding applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
DMN37 8DGF Series 80x80mm DC Brush Motor
$349.99
Quantity: 1
Claim Your Seller Account
DMN37 8DGF Series 80x80mm DC Brush Motor
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN37 8DGF Series DC Brush Motors with Continuous Operation are engineered for exceptional durability and performance. With over 1 million cycles of intermittent operation and a continuous operating life of 3000 hours, these motors offer reliability in demanding applications. Featuring a robust construction, optimized brush design for low noise, and high heat dissipation properties, they deliver high output and withstand high radial loads. Equipped with ball bearings, large diameter output shaft, and resin brush holders for increased insulation, these motors ensure consistent operation. Customizable with a wide selection of gear heads and reduction ratios, they cater to diverse requirements. Available with magnetic revolution sensor and noise filter for further functionality.
Product Specifications
Additional Information 0
DMN37 8DGF Series DC Brush Motors with Continuous Operation (DMN37J8HFPB) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Bolt
M5 x 60 mm | M5 x 2.362 in
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
25
Specifications L1
106.7 mm | 4.201 in
Specifications L2
42 mm | 1.654 in
Specifications Note
When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN37J8HFPB (Pinion shaft motor)8DG_F (Gearbox)Enter the required reduction ratio in the _Rotation of gearbox shaft is in reverse of rotation of motor.
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
102 oz·in | 0.71 N·m
Specifications Series
DMN37
Specifications Speed
144 r/min
Specifications Voltage
24 V
Specifications Weight
940 g | 2.1 lb
