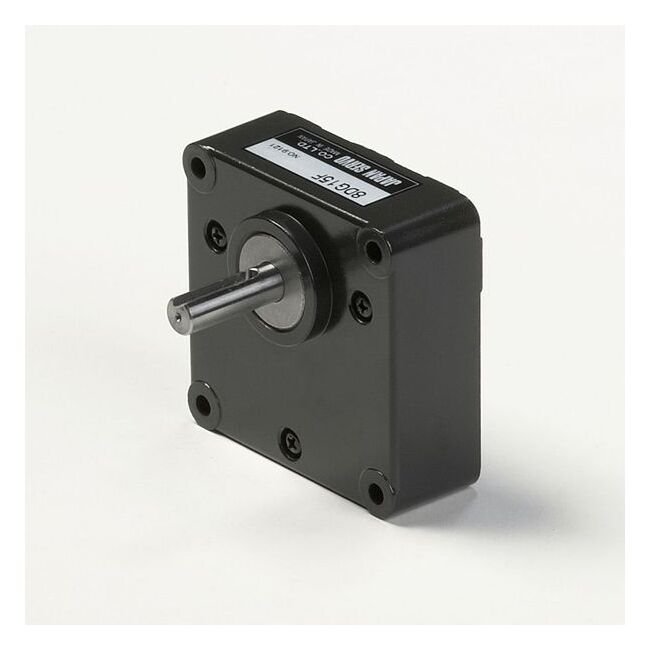

DMN37 8DGF Series DC Brush Motor with Continuous Operation
DMN37 8DGF Series DC Brush Motor with Continuous Operation
SKU:PER-fb852b
Premium DMN37 8DGF Series DC Brush Motor with high output, durability, and low noise for precision applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DMN37 8DGF Series DC Brush Motor with Continuous Operation
$299.99
Quantity: 1
Claim Your Seller Account
DMN37 8DGF Series DC Brush Motor with Continuous Operation
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN37 8DGF Series DC Brush Motor is engineered for superior performance in demanding applications. With an optimized brush design, it offers long-life durability through over 1 million cycles of intermittent operation. Boasting a continuous operating life of 3000 hours, this motor delivers high output power with exceptional heat dissipation and resistance. Its robust construction ensures high radial load capacity, supported by a large diameter output shaft and ball bearings. Enjoy low noise operation and enhanced insulation thanks to advanced resin brush holders. With a wide selection of gear heads and reduction ratios available, along with optional magnetic revolution sensor and noise filter, the DMN37 8DGF Series is the ideal choice for precision motion control.
Product Specifications
Additional Information 0
DMN37 8DGF Series DC Brush Motors with Continuous Operation (8DG15F) | DMN37 8DGF Series DC Brush Motors with Continuous Operation (DMN37J8HFPB) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Bolt
M5 x 50 mm | M5 x 1.969 in
Specifications Frame Size
80 x 80 mm | 3.15 x 3.15 in
Specifications Gear Ratio
15
Specifications L1
96.7 mm | 3.807 in
Specifications L2
32 mm | 1.260 in
Specifications Note
When ordering, please write the motor model and gearbox model numbers separately, as in the following example:DMN37J8HFPB (Pinion shaft motor)8DG_F (Gearbox)Enter the required reduction ration in the _
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
66.8 oz·in | 0.48 N·m
Specifications Series
DMN37
Specifications Speed
240 r/min
Specifications Voltage
24 V
Specifications Weight
840 g | 1.9 lb
