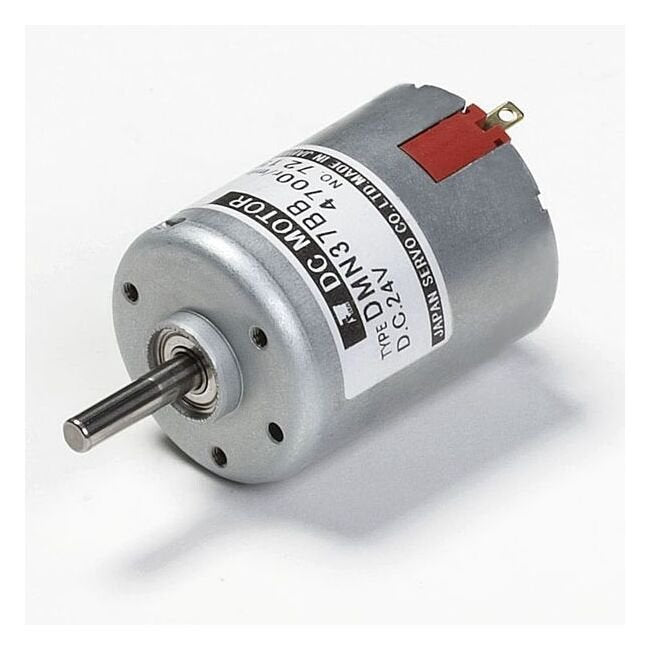

DMN37 Series High-Output DC Brush Motor
DMN37 Series High-Output DC Brush Motor
SKU:PER-3a45fe
Highly durable DMN37 Series DC Brush Motors with optimized design for longevity and exceptional performance in various applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
DMN37 Series High-Output DC Brush Motor
$59.99
Quantity: 1
Claim Your Seller Account
DMN37 Series High-Output DC Brush Motor
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN37 Series DC Brush Motors are engineered for exceptional durability and performance, with a lifespan exceeding 1 million cycles. Featuring optimized brush design for longevity, these motors offer high heat dissipation, heat resistance, and strength with a robust construction and large diameter output shaft. With low noise operation and enhanced insulation, these motors come with a variety of gear heads and reduction ratios to meet diverse requirements. Available options include magnetic revolution sensors and noise filters, making them ideal for industrial and institutional applications.
Product Specifications
Additional Information 0
Connection Diagram | Magnectic Type Revolution Sensor | Motor Selection Guide | Optical Type Revolution Sensor
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Current No Load
0.12 A
Specifications Current Rating
370 mA | 0.37 A
Specifications Diameter
1.102 in | 28 mm
Specifications L1
45.2 mm | 1.780 in
Specifications L2
39.5 mm | 1.555 in
Specifications Note
Intermittent ratings are given for DMN37JB. (DUTY50%)
Specifications Product Type
DC Brush Motor
Specifications Rated Output
4.6 W
Specifications Rated Speed
4500 r/min
Specifications Rated Torque
9.8 mN·m | 1.39 oz·in
Specifications Series
DMN37
Specifications Speed No Load
5500 r/min
Specifications Stall Torque
54 mN·m | 7.64 oz·in
Specifications Voltage Dc
24 V
Specifications Weight
130 g | 0.29 lb
Torque Curve 0
