DMS Guided Ejection Support Pillars
DMS Guided Ejection Support Pillars
SKU:GUI-d80d88
Enhance precision and efficiency with DMS Guided Ejection Support Pillars. Reduce machining time and optimize performance. Trust the reliability of DMS.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DMS Guided Ejection Support Pillars
$49.99
Quantity: 1
Claim Your Seller Account
DMS Guided Ejection Support Pillars
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

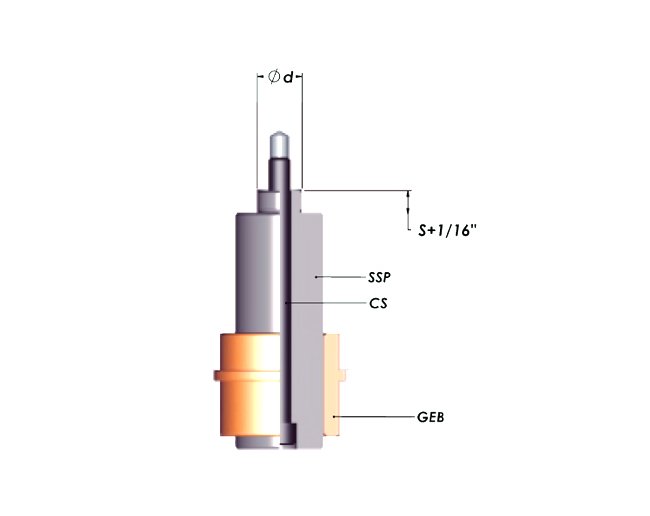

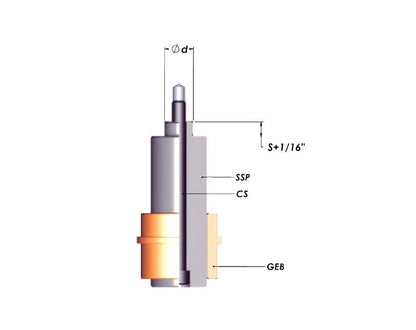

Experience precision and efficiency with DMS Guided Ejection Support Pillars. Case hardened and available in standard lengths, these pillars require no bottom clamp plate machining. Significantly reduce your ejector set machining with their large 2-inch diameter, small 0.750-inch diameter, and 0.375-inch pillar body length. Trust in their reliability as they are equipped with a 3/8-16 x L + 0.500-inch supplied capscrew. Enhance your operations with DMS's industry-leading solution.

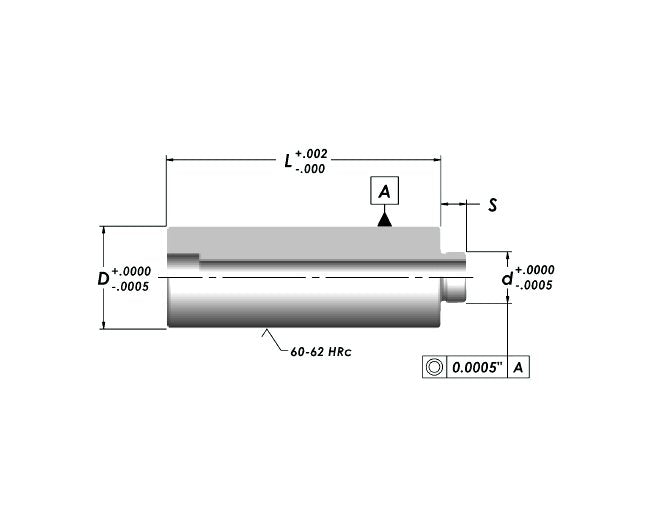

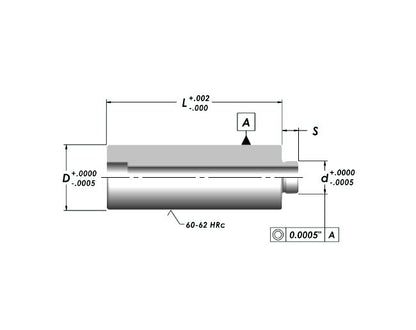

Product Specifications
Specifications Depth Of Reamed Hole For Small Diameter
0.437 in
Specifications Large Diameter
2 in
Specifications Manufacturer
DMS
Specifications Pillar Body Length
0.375 in
Specifications Small Diameter
0.750 in
Specifications Supplied Capscrew
3/8-16 x L + 0.500 in
Specifications Tapped Hole Depth For Capscrew
0.656 in
Specifications Top Length
3-1/2 in
