DMS Guided Ejection Support Pillars
DMS Guided Ejection Support Pillars
SKU:GUI-44ae5c
Upgrade your ejection system with DMS Guided Ejection Support Pillars for efficient, reliable performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DMS Guided Ejection Support Pillars
$24.99
Quantity: 1
Claim Your Seller Account
DMS Guided Ejection Support Pillars
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

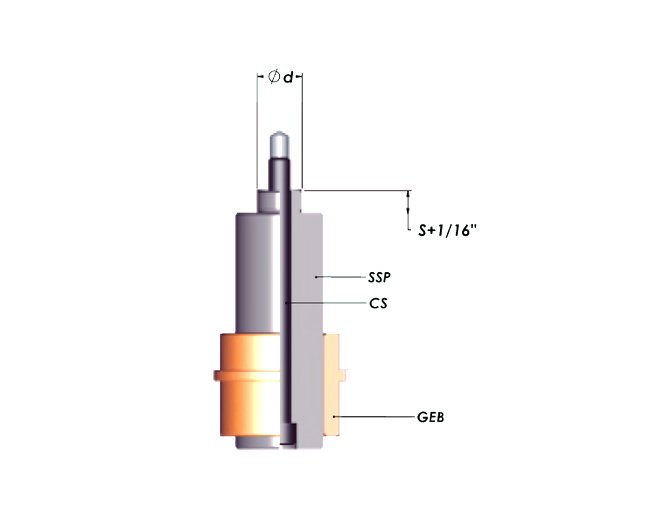

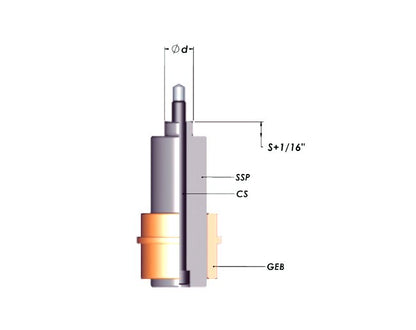

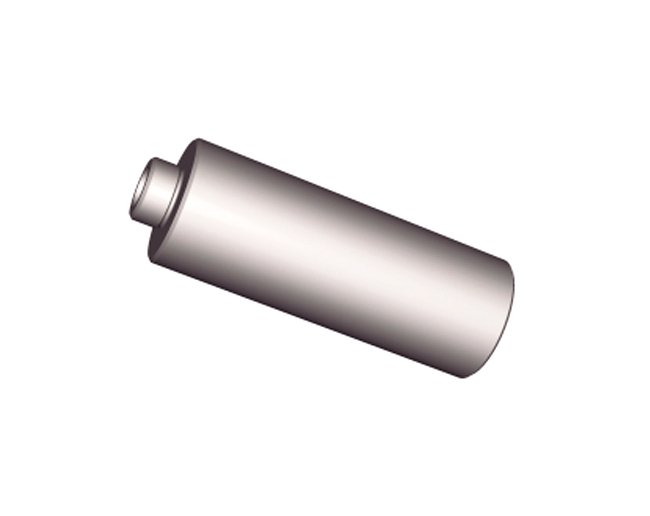

Enhance your guided ejection system with DMS Guided Ejection Support Pillars. These pillars, with a large diameter of 2 inches and small diameter of 0.750 inches, offer reliable support without the need for bottom clamp plate machining. Built to exacting standards, the pillars reduce ejector set machining time and eliminate press fit concerns, ensuring efficient operation. Crafted from case-hardened steel and supplied with a 3/8-16 x 0.500 inch capscrew, these pillars from DMS guarantee durability and precision for your industrial applications.

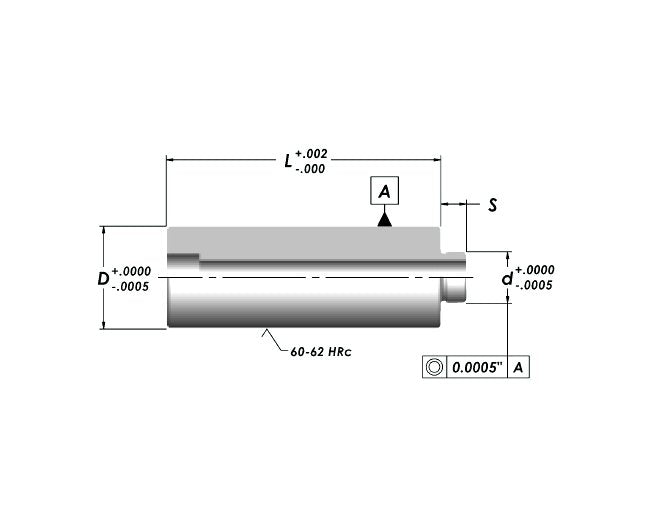

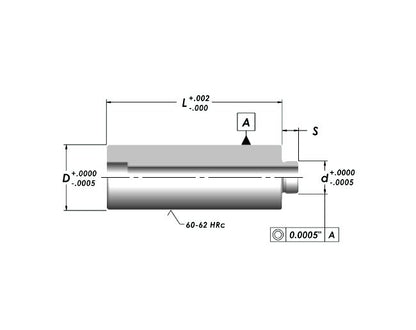

Product Specifications
Specifications Depth Of Reamed Hole For Small Diameter
0.437 in
Specifications Large Diameter
2 in
Specifications Manufacturer
DMS
Specifications Pillar Body Length
0.375 in
Specifications Small Diameter
0.750 in
Specifications Supplied Capscrew
3/8-16 x L + 0.500 in
Specifications Tapped Hole Depth For Capscrew
0.656 in
Specifications Top Length
2-1/2 in
