DMS Guided Ejection Support Pillars
DMS Guided Ejection Support Pillars
SKU:GUI-8018c4
Maximize efficiency with DMS Guided Ejection Support Pillars. Durable, precise, and compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
DMS Guided Ejection Support Pillars
$29.99
Quantity: 1
Claim Your Seller Account
DMS Guided Ejection Support Pillars
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

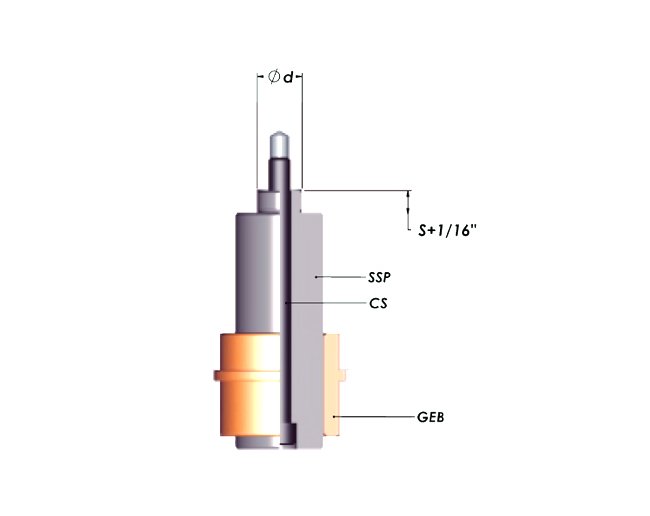

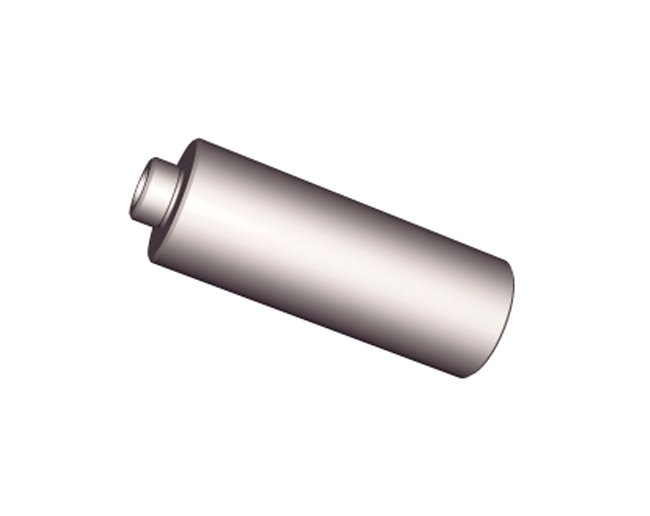

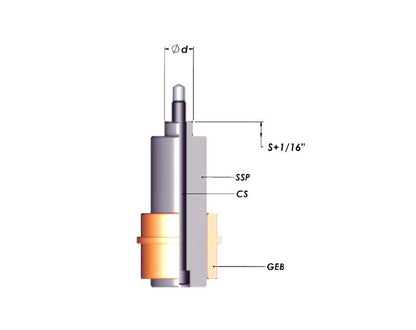

Enhance your mold operation efficiency with DMS Guided Ejection Support Pillars. These pillars feature a large diameter of 2 inches and a small diameter of 0.750 inches, ensuring robust support. The case-hardened construction guarantees durability. With no press fit concerns and reduced machining needs, these pillars streamline your ejector set assembly process. Ideal for both consumer and institutional needs, these pillars meet stringent industry standards, providing reliable performance for any guided ejector system.

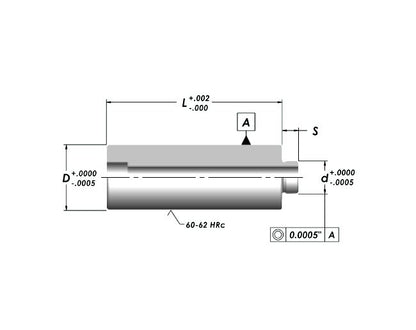

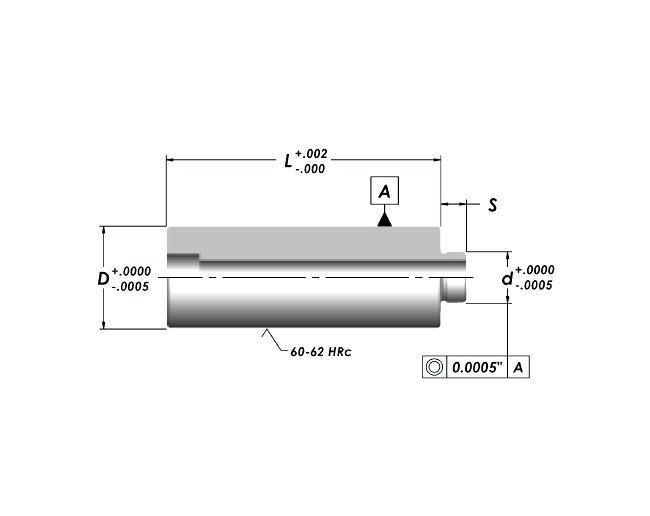

Product Specifications
Specifications Depth Of Reamed Hole For Small Diameter
0.437 in
Specifications Large Diameter
2 in
Specifications Manufacturer
DMS
Specifications Pillar Body Length
0.375 in
Specifications Small Diameter
0.750 in
Specifications Supplied Capscrew
3/8-16 x L + 0.500 in
Specifications Tapped Hole Depth For Capscrew
0.656 in
Specifications Top Length
6 in
