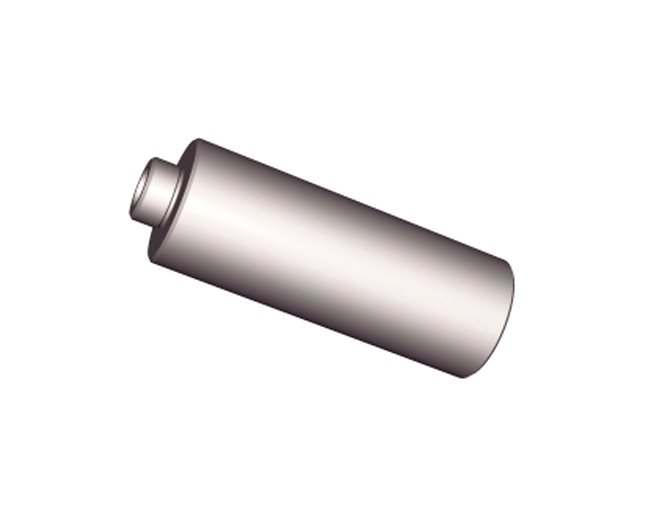

DMS Guided Ejection Support Pillars
DMS Guided Ejection Support Pillars
SKU:GUI-031928
Enhance molding efficiency with DMS Guided Ejection Support Pillars. Durable, precise design for smooth operations. Ideal for industrial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
DMS Guided Ejection Support Pillars
$39.99
Quantity: 1
Claim Your Seller Account
DMS Guided Ejection Support Pillars
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your molding process with precision-engineered Guided Ejection Support Pillars by DMS. These support pillars, featuring a Large Diameter of 2 in and a Small Diameter of 0.750 in, offer impeccable strength and stability. The pillar body length of 0.375 in and top length of 4-1/2 in ensure efficient ejection support. With no press fit concerns and reduced ejector set machining, these pillars streamline your workflow. Manufactured by DMS, a trusted name in industrial solutions, these pillars are case-hardened for durability and reliability, meeting the stringent standards of institutional procurement.
Product Specifications
Specifications Depth Of Reamed Hole For Small Diameter
0.437 in
Specifications Large Diameter
2 in
Specifications Manufacturer
DMS
Specifications Pillar Body Length
0.375 in
Specifications Small Diameter
0.750 in
Specifications Supplied Capscrew
3/8-16 x L + 0.500 in
Specifications Tapped Hole Depth For Capscrew
0.656 in
Specifications Top Length
4-1/2 in
