DMS Guided Ejection Support Pillars
DMS Guided Ejection Support Pillars
SKU:GUI-c241cd
Maximize mold ejection efficiency with DMS Guided Ejection Support Pillars. Precision-engineered for seamless performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
DMS Guided Ejection Support Pillars
$29.99
Quantity: 1
Claim Your Seller Account
DMS Guided Ejection Support Pillars
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

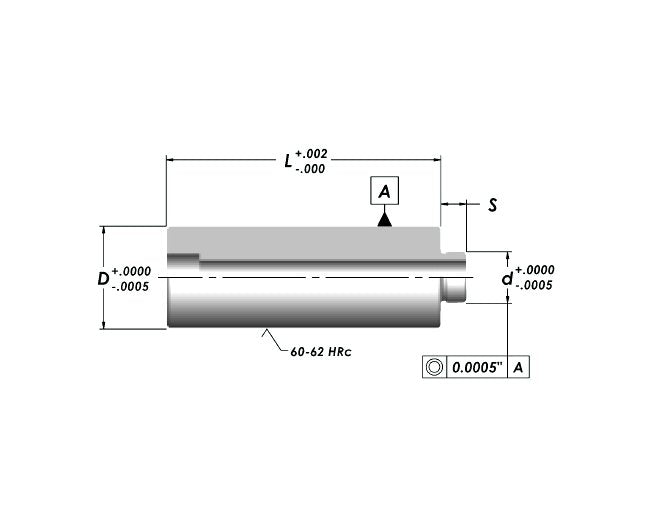

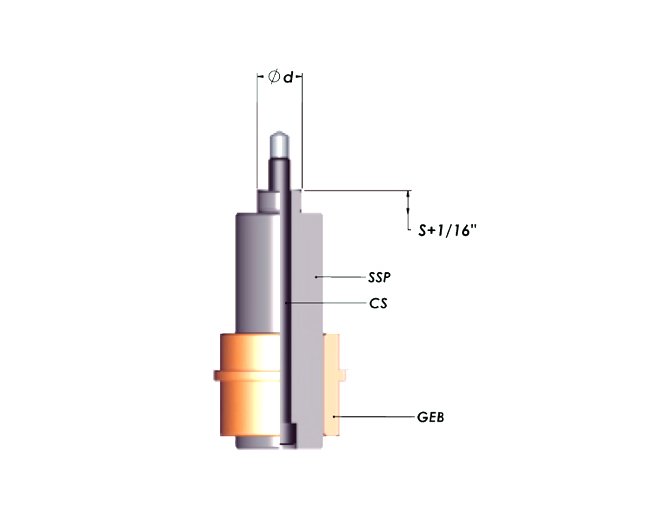

Enhance your mold ejection process with DMS Guided Ejection Support Pillars. These pillars boast a large diameter of 1-1/2 in, small diameter of 0.750 in, and a pillar body length of 0.375 in. With case-hardened construction and a precision design, they eliminate the need for bottom clamp plate machining and reduce ejector set machining. Experience seamless performance and increased efficiency with these pillars, manufactured by DMS to meet the highest standards.
Product Specifications
Specifications Depth Of Reamed Hole For Small Diameter
0.437 in
Specifications Large Diameter
1-1/2 in
Specifications Manufacturer
DMS
Specifications Pillar Body Length
0.375 in
Specifications Small Diameter
0.750 in
Specifications Supplied Capscrew
3/8-16 x L + 0.500 in
Specifications Tapped Hole Depth For Capscrew
0.656 in
Specifications Top Length
3 in
