DMS Guided Ejection Support Pillars
DMS Guided Ejection Support Pillars
SKU:GUI-f9dd14
Optimize guided ejection processes with precision-engineered DMS Support Pillars.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
DMS Guided Ejection Support Pillars
$24.99
Quantity: 1
Claim Your Seller Account
DMS Guided Ejection Support Pillars
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

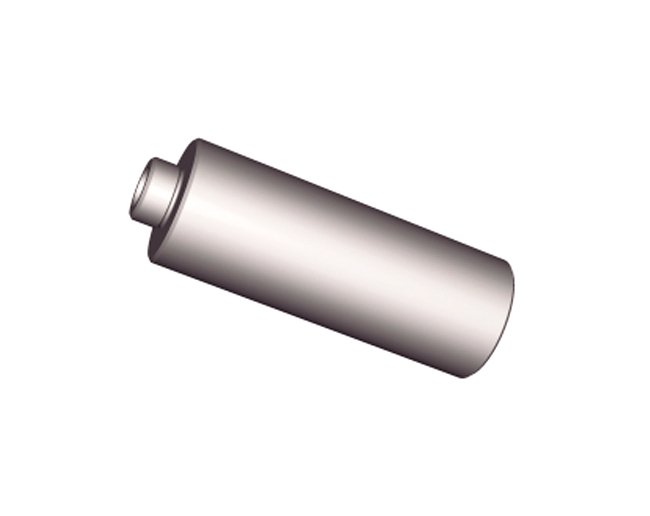

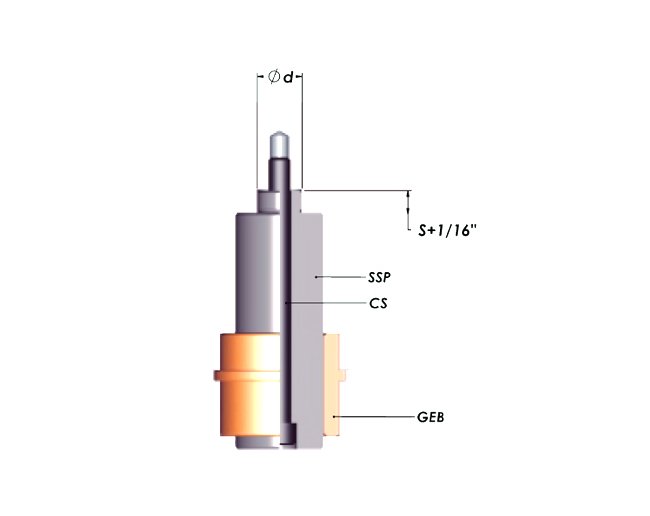

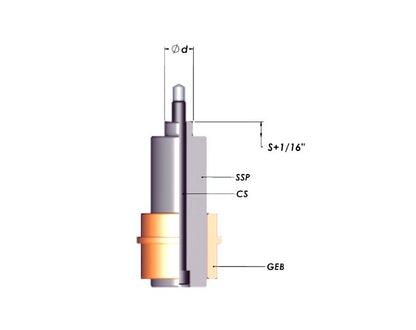

Enhance your guided ejection processes with DMS Guided Ejection Support Pillars. These pillars offer superior precision and durability, featuring a large diameter of 3/4 in, a small diameter of 0.468 in, and a pillar body length of 0.281 in. With easy installation and no press fit concerns, these pillars reduce ejector set machining significantly. The included 1/4-20 capscrew ensures secure fastening. Manufactured by DMS, these pillars are case hardened for enhanced performance and longevity.

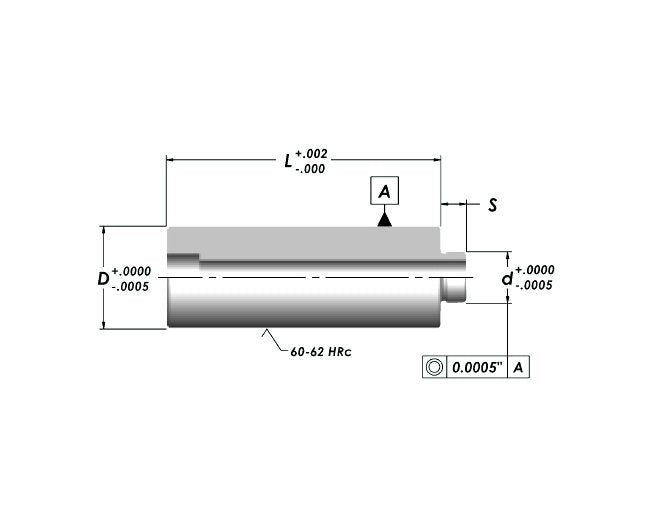

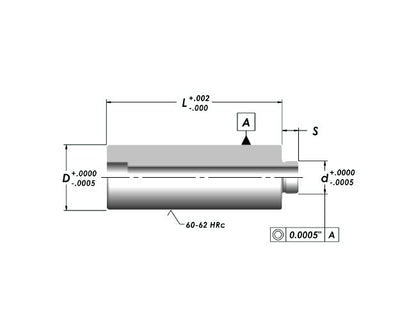

Product Specifications
Specifications Depth Of Reamed Hole For Small Diameter
0.343 in
Specifications Large Diameter
3/4 in
Specifications Manufacturer
DMS
Specifications Pillar Body Length
0.281 in
Specifications Small Diameter
0.468 in
Specifications Supplied Capscrew
1/4-20 x L + 0.250 in
Specifications Tapped Hole Depth For Capscrew
0.468 in
Specifications Top Length
3 in
