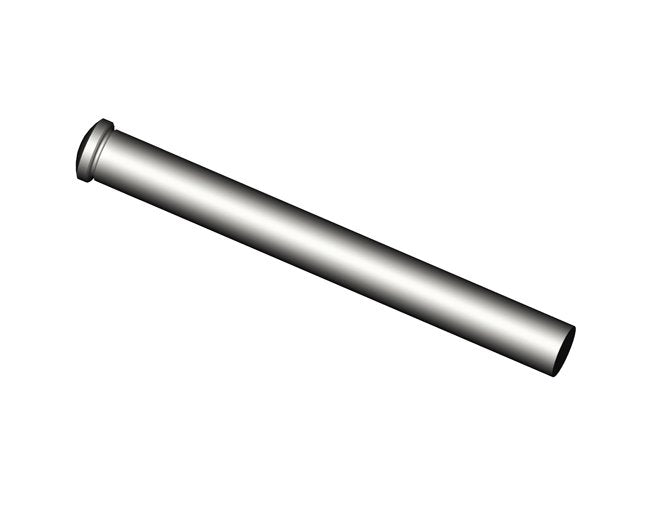

The DMS Radius-Head Angle Pin is expertly crafted from H-13 steel, ensuring exceptional durability and reliability in industrial applications. With a unique feature of spherical radius pre-machined heads, these angle pins eliminate the need for angle grinding. Designed for precise installation at specific angles, the pin's dimensions and surface hardness of 65-64 Rc meet stringent industry standards. Experience smooth operations with these ground, nitrided, and polished angle pins, ideal for pushing slides and creating seamless travel. Trust in DMS quality for efficient and compliant solutions.
Product Specifications
Features 0
Manufactured from H-13 steelSurface hardness 65-64 RcCore hardness 35-40 RcGround, nitrided and polished
Installation Notes 0

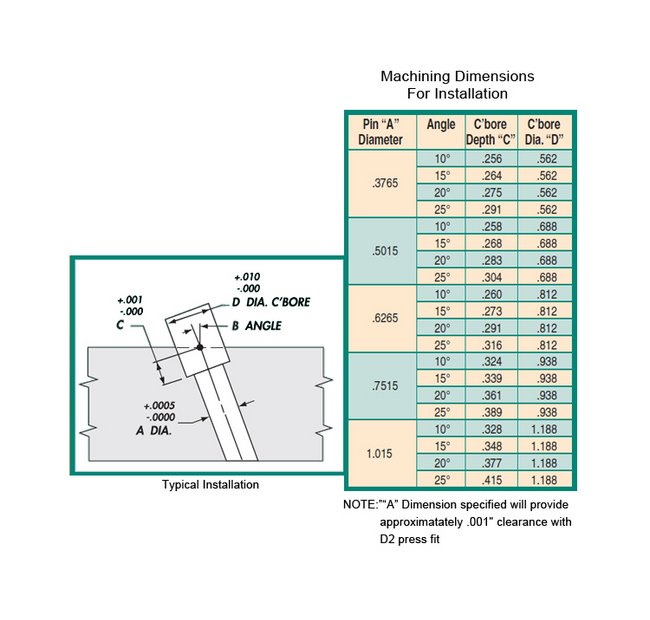

Cut angle pin to length as required to obtain required travel on the slide. The angle pin works on angle in clearance hole in slide to push the slide & create travel.

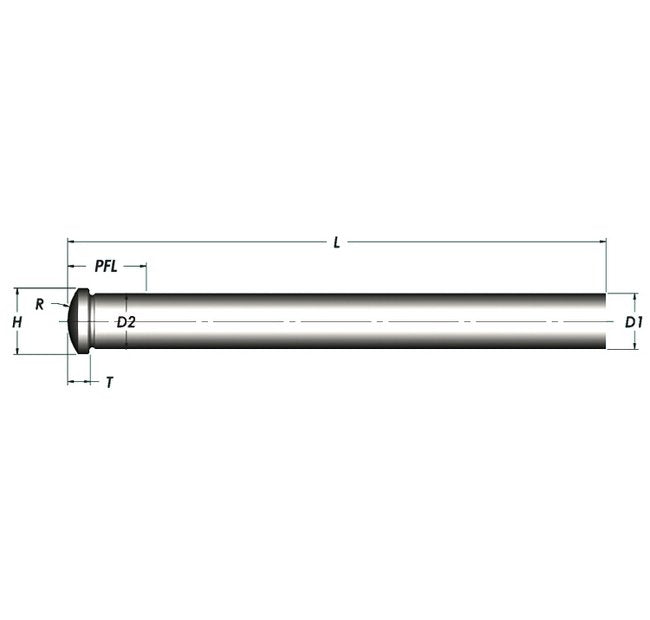

Specifications Core Hardness
35-40 Rockwell C
Specifications Diameter 00000 00005
0.7490 in
Specifications Dimension D2 00000 00005
0.7515 in
Specifications Dimension H 0000 0010
0.875 in
Specifications Dimension L 050 000
14 in
Specifications Dimension Pfl 000 006
1-3/8 in
Specifications Dimension R Sph Rad
0.750 in
Specifications Dimension T 0000 0005
0.312 in
Specifications Manufacturer
DMS
Specifications Material
H-13 Steel
Specifications Surface Hardness
65-64 Rockwell C
