DN300 EVFS Ductile Iron Butterfly Valve

Name: DN300 EVFS Ductile Iron Butterfly Valve
Brand: World Wide Metric, Inc.
SKU: VAL-161c85
Price: 699.99 USD
Availability: OutOfStock

SKU:VAL-161c85

High-quality DN300 EVFS Ductile Iron Butterfly Valve for precise flow control in isolating and regulating applications.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DN300 EVFS Ductile Iron Butterfly Valve is a high-quality, PN16 rated double flanged valve designed for precise flow control and exceptional durability. Featuring a bare shaft design, this valve is suitable for isolating and regulating applications. Constructed from ductile iron and equipped with stainless steel shaft material, it ensures reliable performance even under demanding conditions. With approvals from ABS, BV, DNV, and more, this valve meets stringent industry standards, making it an ideal choice for institutional and government procurement.

Product Specifications

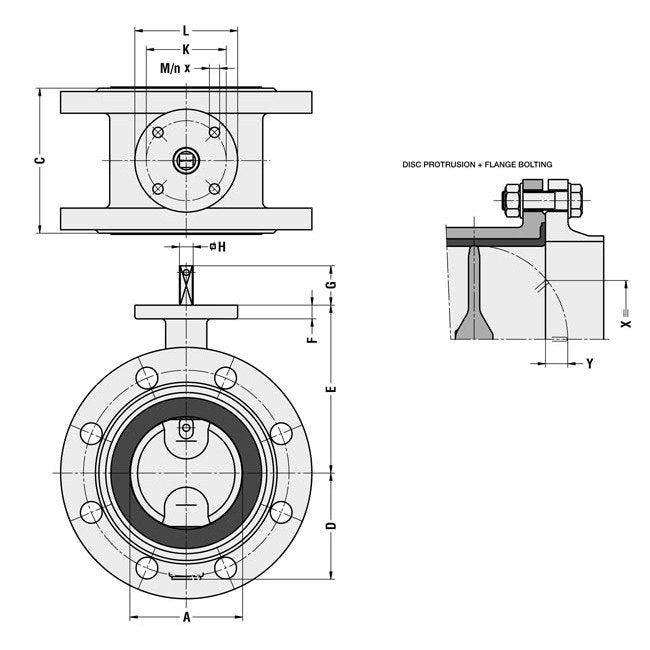

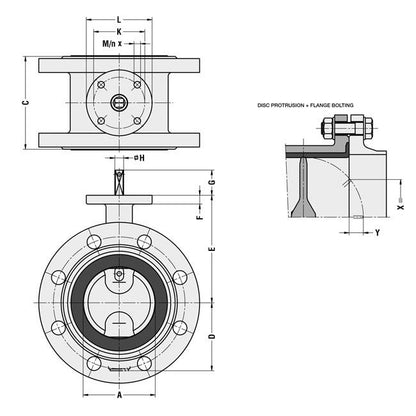

Specifications A

300 mm

Specifications Actuation Possibilities

Bare

Specifications Available Type Approvals

ABS | BV | DNV | DVGW | FM | GL | KIWA | LRS | NKK | RIN | RMRS | SVGW | WRC

Specifications Body Material

Ductile Iron

Specifications C

178 mm

Specifications D

219 mm

Specifications E

270 mm

Specifications F

15 mm

Specifications Flange Connections

PN 16

Specifications G

45 mm

Specifications H Diameter

24 mm

Specifications Iso 5211

F10

Specifications K

102 mm

Specifications L

125 mm

Specifications Liner Material

Ethylene Propylene Diene Monomer (EPDM)

Specifications M Diameter

11 mm

Specifications N Number Of Holes

Specifications Shaft Material

Stainless Steel 1.4462

Specifications Size

DN300 - 12" | 300 mm

Specifications Standard

DIN

Specifications Stem Material

Aluminum Bronze | Duplex Stainless Steel 1.4462 | Martensitic Stainless Steel 1.4408

Specifications Valve Function

Isolating valve (on,off) and regulating valve | Regulating valve

Specifications Valve Shut Off Pressure

10 bar | 16 bar | 2.5 bar | 6 bar

Specifications Weight

65.0 kg

Specifications X

242 mm

Specifications Y

61 mm

DN300 EVFS Ductile Iron Butterfly Valve
