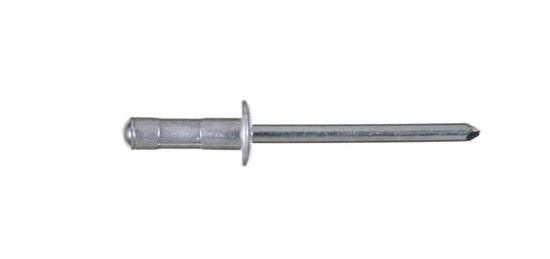

Dome Head Aluminum Steel Rivets 3.2mm x 9.5mm
Dome Head Aluminum Steel Rivets 3.2mm x 9.5mm
SKU:UFI-f1ef37
Premium Dome Head Aluminum Steel Rivets for secure and durable fastening, ideal for industrial projects.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Dome Head Aluminum Steel Rivets 3.2mm x 9.5mm
$89.99
Quantity: 1
Claim Your Seller Account
Dome Head Aluminum Steel Rivets 3.2mm x 9.5mm
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The U-Fix Dome Head Aluminum Steel Rivets are precision-engineered for secure fastening applications. Made from high-quality Aluminum Alloy ALmg 2.5 with a Zinc Plated Chromium VI Free low carbon steel mandrel, these rivets deliver exceptional shear and tensile strength. Ideal for industrial and construction projects, the rivets feature a 3.2mm diameter and 9.5mm body length. With a nominal shear force of 75 kgf and tensile force of 104 kgf, they ensure reliable and durable connections.
Product Specifications
Nominal Dimensions Body Length
9.5 mm | 0.374 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
6.4 mm | 0.252 in
Nominal Dimensions Head Thickness
0.95 mm | 0.037 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.2 mm | 0.047 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
104 kgf | 230 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
