Donaldson® Downflo® Oval 6 Filters Dust Collector - 45.0 in
Donaldson® Downflo® Oval 6 Filters Dust Collector - 45.0 in
SKU:DOW-d941e6
Enhance air quality with the Donaldson® Downflo® Oval Dust Collector - ultra-efficient filtration for cleaner air & cost savings.
Regular price
$7,599.99
Regular price
Sale price
$7,599.99
Unit price
per
Initiate Order
Donaldson® Downflo® Oval 6 Filters Dust Collector - 45.0 in
$7,599.99
Quantity: 1
Claim Your Seller Account
Donaldson® Downflo® Oval 6 Filters Dust Collector - 45.0 in
$7,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

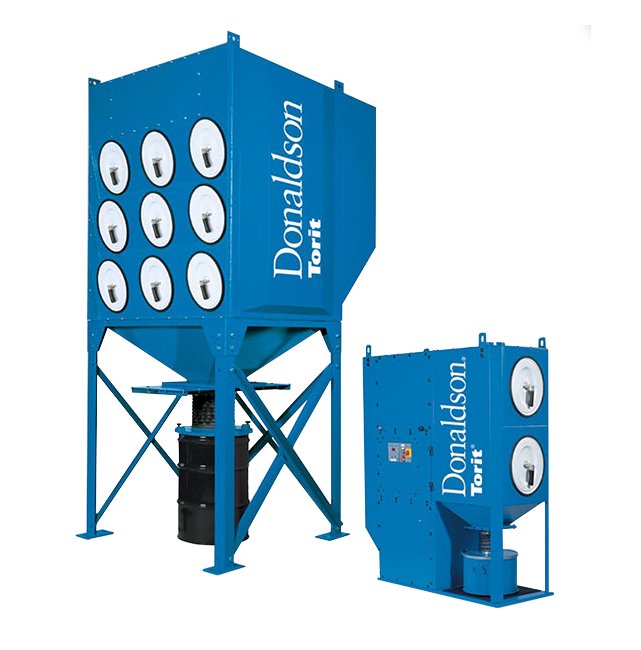

The Donaldson® Downflo® Oval 6 Filters Dust Collector sets industry standards with its efficient Ultra-Web® nanofiber filtration technology, delivering cleaner air, extended filter life, and significant cost savings. Featuring high-performance specifications like Nominal Airflow of 570 to 4790 ft³/min and Ultra-Web® Filter Area of 1140 ft², this collector is designed for sawing applications. Its compact design, advanced cleaning technology, and proprietary filters ensure optimal airflow and minimize maintenance costs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

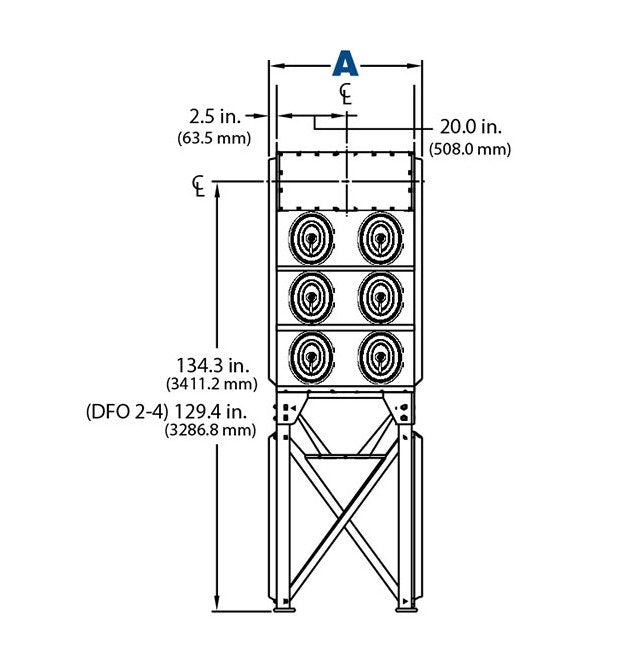

Dimensions Dimension A
45.0 in | 1143.0 mm
Dimensions Dimension B
137.4 in | 3490.0 mm
Dimensions Dimension C
62 in | 1574.8 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
60 psi | 4.1 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Applications
Sawing of High Pressure Hydraulic Hose
Specifications Approximate Shipping Weight
1400 lb | 635.0 kg
Specifications Nominal Airflow
570 to 4790 ft³/min | 968.2 to 8136.5 m³/h
Specifications Number Of Cartridges
6
Specifications Number Of Filters
6
Specifications Number Of Filter Rows
3
Specifications Number Of Valves
6
Specifications Ultra Web Filter Area
1140 ft² | 105.9 m²
