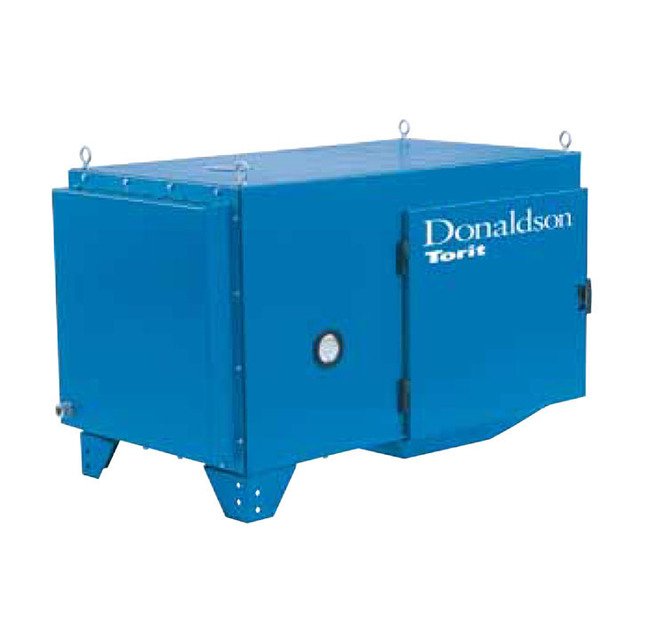

Donaldson® Dryflo® 390 CFM Mist Collector

Name: Donaldson® Dryflo® 390 CFM Mist Collector
Brand: Dust Collector Services, Inc.
SKU: DRY-fced08
Price: 1599.99 USD
Availability: OutOfStock

SKU:DRY-fced08

Enhance productivity and safety with the Donaldson® Dryflo® 390 CFM Mist Collector. Efficiently reduces coolant and machining oil mists while meeting OSHA standards.

$1,599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Donaldson® Dryflo® 390 CFM Mist Collector is a premium filtration solution designed to efficiently reduce coolant and machining oil mists. With a powerful 0.75 hp motor and high-performance three-stage filtration, this mist collector ensures a cleaner work environment, improved productivity, and reduced mist-related hazards. Maintenance is made easy with quick filter changes, minimal worker contact with collected oil, and a differential pressure gauge for predictable servicing. This collector meets OSHA Clean Air Standards, enhancing workplace safety and compliance.

Product Specifications

Additional Information

High performance three-stage filtration improves collection efficiency at every stageProvides a cleaner work environment for maximum productivityReduces risk of mist related hazardsQuick and easy filter changes-workers have minimal contact with collected oilPredictable maintenance with a differential pressure gaugeLower plant maintenance costsMounts directly onto a machining center to collect oil, water-soluble, semi-synthetic and synthetic coolantLow profileHelps support OSHA Clean Air Standards

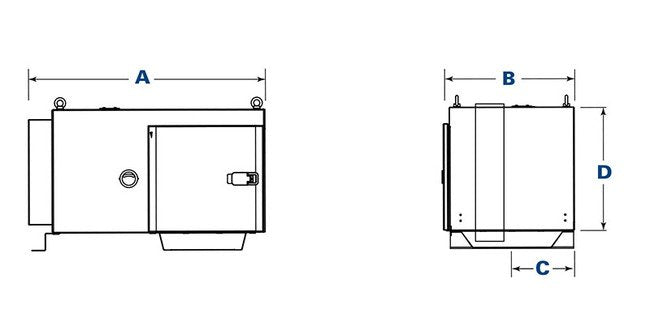

Dimensions Dimension A

30.3 in | 769.6 mm

Dimensions Dimension B

16.0 in | 406.4 mm

Dimensions Dimension C

8.0 in | 203.2 mm

Dimensions Dimension D

15.8 in | 401.3 mm

Note

Significantly improve the performance of your collector with genuine Donaldson Torit replacement filters and parts.All Rights Reserved. All products, product specifications, and data (airflow, capacity, dimensions, or availability) are subject to change without notice, and may vary by region or country. Donaldson Torit is a registered trademark of Donaldson Company, Inc. Contains Donaldson proprietary technology.

Specifications Filter Area

41 ft² | 12.5 m²

Specifications Motor

0.75 hp

Specifications Nominal Airflow

390 ft³/min | 662 m³/h

Specifications Number Of Filters

Specifications Shipping Weight

85 lb | 38.6 kg

Specifications Sound Level

65 dBA

Specifications Warranty

10 years

Donaldson® Dryflo® 390 CFM Mist Collector
