Donaldson® Modular Mediafilter™ Horizontal Series Ambient Mist Collector

Name: Donaldson® Modular Mediafilter™ Horizontal Series Ambient Mist Collector
Brand: Dust Collector Services, Inc.
SKU: MOD-5b4871
Price: 5499.99 USD
Availability: OutOfStock

SKU:MOD-5b4871

Enhance workplace safety with the Donaldson® Modular Mediafilter™ Ambient Mist Collector, featuring 3000-3400 ft³/min airflow capacity and OSHA compliance.

$5,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

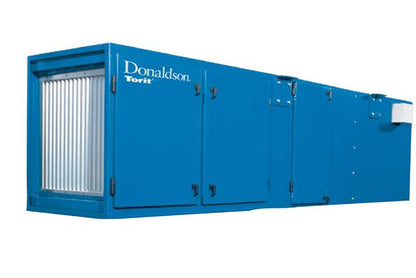

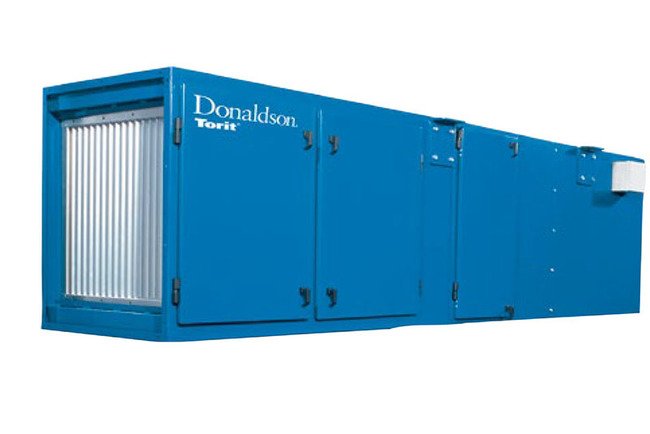

The Donaldson® Modular Mediafilter™ Horizontal Series Ambient Mist Collector is a high-performance solution designed to efficiently remove mist and airborne contaminants from industrial environments. With a nominal airflow capacity of 3000-3400 ft³/min, this collector ensures a cleaner work environment, maximizing productivity. The innovative design features easy filter change-out, simple maintenance, and options for ceiling mount installation to save valuable floor space. Compliant with OSHA Clean Air Standards, this collector is available in ambient capture models and is compatible with genuine Donaldson Torit replacement filters and parts for optimized performance.

Product Specifications

Additional Information

Ceiling mount, horizontal design saves valuable floor spaceDesign features provide easy filter change out and simple maintenanceAvailable in ambient or source capture modelsProvides a cleaner work environment for maximum productivityHelps support OSHA Clean Air Standards

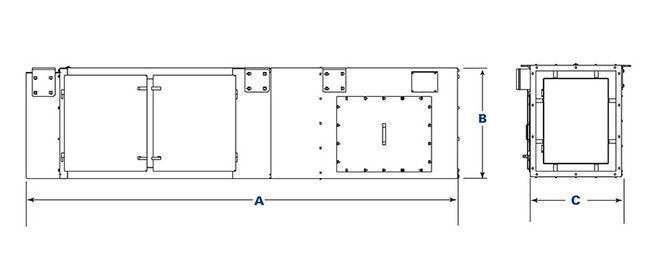

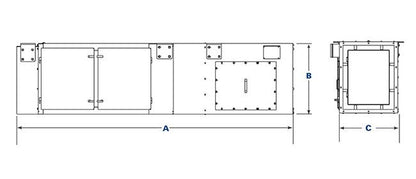

Dimensions Dimension A

108.4 in | 2753.4 mm

Dimensions Dimension B

31.9 in | 810.3 mm

Dimensions Dimension C

54.0 in | 1371.6 mm

Equipment Options

First-stage high efficiency filter, 24 x 24 x 4 inches (609.6 x 609.6 x 101.6 millimeters)First-stage multi-vee filter, 24 x 24 x 4 inches (609.6 x 609.6 x 101.6 millimeters)HEPA/95% DOP filter module, 24 x 24 x 11.5 inches (609.6 x 609.6 x 292.1 millimeters)Carbon filter moduleMultiple power pack options, including explosion-proof motorsP-Trap assemblyP-Trap with Y-Strainer assembly1-Gallon (3.8-Liter) container

Note

Significantly improve the performance of your collector with genuine Donaldson Torit replacement filters and parts.All Rights Reserved. All products, product specifications, and data (airflow, capacity, dimensions, or availability) are subject to change without notice, and may vary by region or country. Donaldson Torit is a registered trademark of Donaldson Company, Inc. Contains Donaldson proprietary technology.

Specifications 1st Stage Filter

4" (101.6 mm) Multi-Vee (2)

Specifications 2nd Stage Filter

Vee-Bag (2) 252 sq. ft. (23.4 m²)

Specifications Collector Type

Ambient

Specifications Nominal Airflow

3000 ft³/min | 3400 ft³/min | 5096 m³/h | 5775 m³/h

Specifications Shipping Weight

775 lb | 351.5 kg
