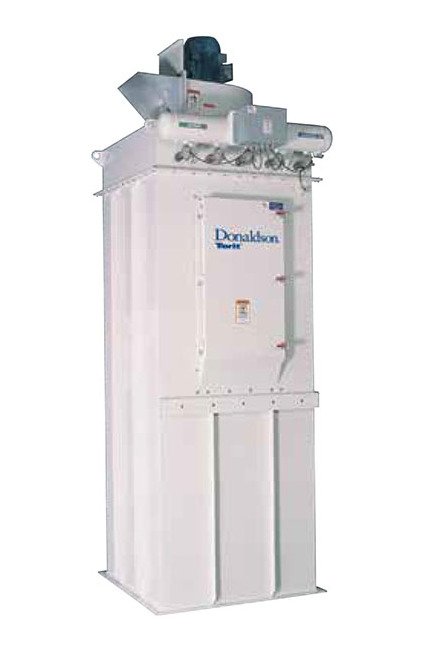

The Donaldson® Torit® Bin Vent is a cost-effective solution designed for dust collection and bin venting applications in industrial settings. Featuring an all-welded construction for enhanced durability and air/water integrity, this unit offers a nominal airflow range of 480 to 1120 cubic feet per minute. With side bag filter removal capability, it can be easily installed in low headroom spaces. The integrated fan option up to 75 hp reduces space requirements, while the unique cleaning system minimizes moisture and particulate issues in pulse valves. This bin vent requires only one dirty air inlet, one clean air outlet, and one hopper, resulting in cost savings on ducting and hopper outlets.
Product Specifications
Additional Information
Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs
Dimensions Dimension A
38 in | 965.2 mm
Dimensions Dimension B
38 in | 965.2 mm
Dimensions Dimension C
93.6 in | 2377.4 mm
Specifications Cloth Area
160 ft² | 14.9 m²
Specifications Length Of Bag Filters
6 ft | 1.8 m
Specifications Nominal Airflow
480 to 1120 ft³/min | 815 to 1902 m³/h
Specifications Shipping Weight
900 lb | 408.2 kg
