Donaldson® Torit® Downflo® Evolution 16 Dust Collector with 160" Dimension
Donaldson® Torit® Downflo® Evolution 16 Dust Collector with 160" Dimension
SKU:DOW-5b3925
Meet Donaldson® Torit®'s advanced Evolution 16 Dust Collector: superior filter efficiency, space-saving design, seismic-rated, and Ultra-Web® technology.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Evolution 16 Dust Collector with 160" Dimension
$4,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Evolution 16 Dust Collector with 160" Dimension
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

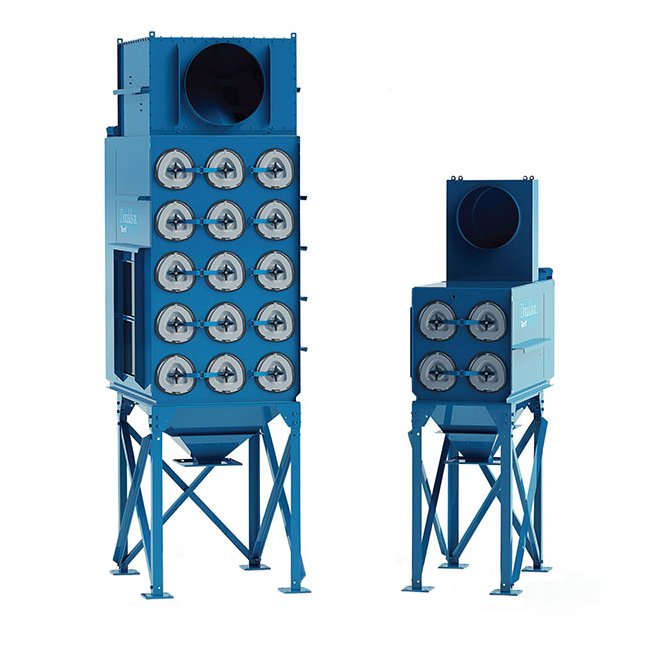

The Donaldson® Torit® Downflo® Evolution 16 Dust Collector stands out as an industry leader in cartridge dust collection technology. With 16 high-efficiency Ultra-Web® filters offering 4064 ft² of filter area, this best-in-class collector reduces filter replacement costs by up to 40%. Its robust steel construction, seismic rating, and control voltages ensure reliable operation in a variety of industrial applications. This collector not only optimizes space utilization but also enhances air quality with Donaldson®'s Ultra-Web® nanofiber filtration technology, making it a smart and compliant choice for discerning buyers.
Product Specifications
Additional Information
A smaller collector helps lower the initial purchase price, reduces filter replacement costs, and opens up valuable manufacturing floor space.This state of the art collector, coupled with Donaldson®'s industry-leading Ultra-Web® nanofiber filtration technology, is truly an intelligent design.
Applications
Dry Bulk | Food Processing | Glass | Metal Grinding | Metal Manufacturing | Pharmaceutical | Plasma Cutting | Thermal Spray | Welding

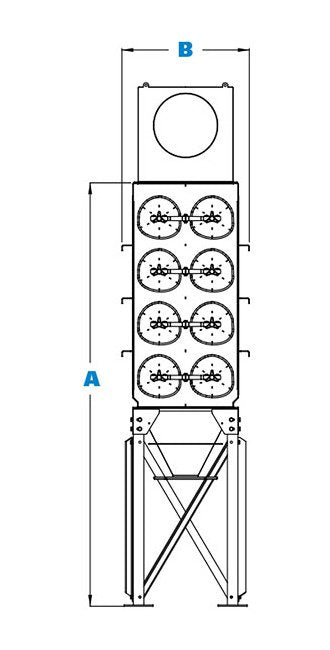

Dimensions Dimension A
160 in | 4064 mm
Dimensions Dimension B
48 in | 1219.0 mm
Dimensions Dimension C
101 in | 2565 mm
Dimensions Dimension D
24.0 in | 36.0 in | 42.0 in | 48.0 in | 610 mm | 915 mm | 1067 mm | 1219 mm
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Basic Wind Speed And Exposure C Per Interna
90 mph | 145 km/h
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Housing Construction Material
Steel
Operating Conditions Housing Construction Material Thickness
3/16 in. (4.8 mm) to 10 Gauge
Operating Conditions Housing Rating
-25 to 10 inH2O | -635 to 254 mmH2O
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Specifications Approximate Shipping Weight
3300 lb | 1497 kg
Specifications Inlet Size For 24 Inch In Dimension D
10 to 16 in
Specifications Inlet Size For 36 Inch In Dimension D
17 to 24 in
Specifications Inlet Size For 42 Inch In Dimension D
26 in | 28 in | 30 in | 32 in
Specifications Inlet Size For 48 Inch In Dimension D
34 in | 36 in | 38 in | 40 in | 42 in
Specifications Number Of Filters
16
Specifications Number Of Valves
8
Specifications Ultra Web Filter Area
4064 ft² | 377.6 m²
