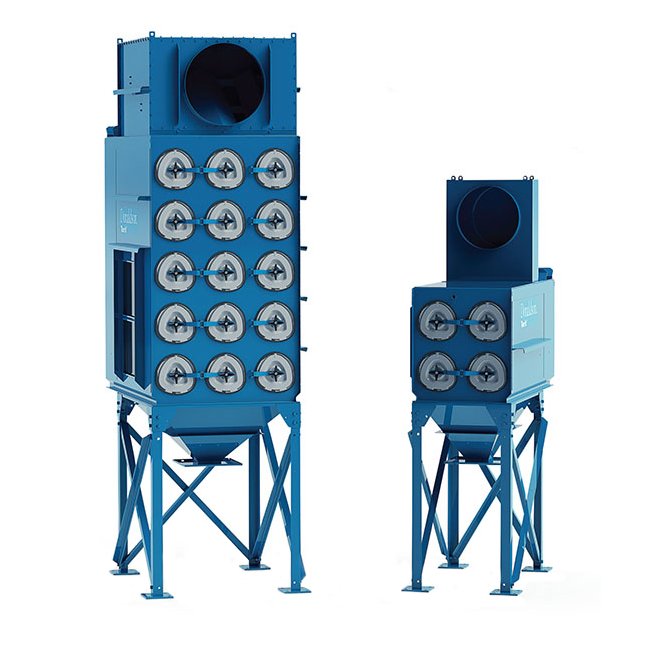

Donaldson® Torit® Downflo® Evolution 32 Dust Collector - 160 inch Dimension A
Donaldson® Torit® Downflo® Evolution 32 Dust Collector - 160 inch Dimension A
SKU:DOW-29df93
Discover the Donaldson® Torit® Downflo® Evolution 32 Dust Collector - Efficient, space-saving, and industry-leading.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Evolution 32 Dust Collector - 160 inch Dimension A
$6,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Evolution 32 Dust Collector - 160 inch Dimension A
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Downflo® Evolution 32 Dust Collector sets a new standard in dust collection efficiency and space optimization. With an impressive reduction in filter quantity by up to 40%, this state-of-the-art unit boasts 8128 ft² of Ultra-Web® nanofiber filter area and 16 high-performance valves. Designed to meet the diverse needs of Dry Bulk, Food Processing, Metal Grinding, Pharmaceutical, and more, this collector is built with steel material, exceeds operating temperature requirements, and maintains a seismic rating compliant with quality industry standards.
Product Specifications
Additional Information
A smaller collector helps lower the initial purchase price, reduces filter replacement costs, and opens up valuable manufacturing floor space.This state of the art collector, coupled with Donaldson®'s industry-leading Ultra-Web® nanofiber filtration technology, is truly an intelligent design.
Applications
Dry Bulk | Food Processing | Glass | Metal Grinding | Metal Manufacturing | Pharmaceutical | Plasma Cutting | Thermal Spray | Welding
Dimensions Dimension A
160 in | 4064 mm
Dimensions Dimension B
88 in | 2235.0 mm
Dimensions Dimension C
101 in | 2565 mm
Dimensions Dimension D
24.0 in | 36.0 in | 42.0 in | 48.0 in | 610 mm | 915 mm | 1067 mm | 1219 mm
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Basic Wind Speed And Exposure C Per Interna
90 mph | 145 km/h
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Housing Construction Material
Steel
Operating Conditions Housing Construction Material Thickness
3/16 in. (4.8 mm) to 10 Gauge
Operating Conditions Housing Rating
-25 to 10 inH2O | -635 to 254 mmH2O
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Specifications Approximate Shipping Weight
5200 lb | 2359 kg
Specifications Inlet Size For 24 Inch In Dimension D
10 to 16 in
Specifications Inlet Size For 36 Inch In Dimension D
17 to 24 in
Specifications Inlet Size For 42 Inch In Dimension D
26 in | 28 in | 30 in | 32 in
Specifications Inlet Size For 48 Inch In Dimension D
34 in | 36 in | 38 in | 40 in | 42 in
Specifications Number Of Filters
32
Specifications Number Of Valves
16
Specifications Ultra Web Filter Area
8128 ft² | 755.1 m²
