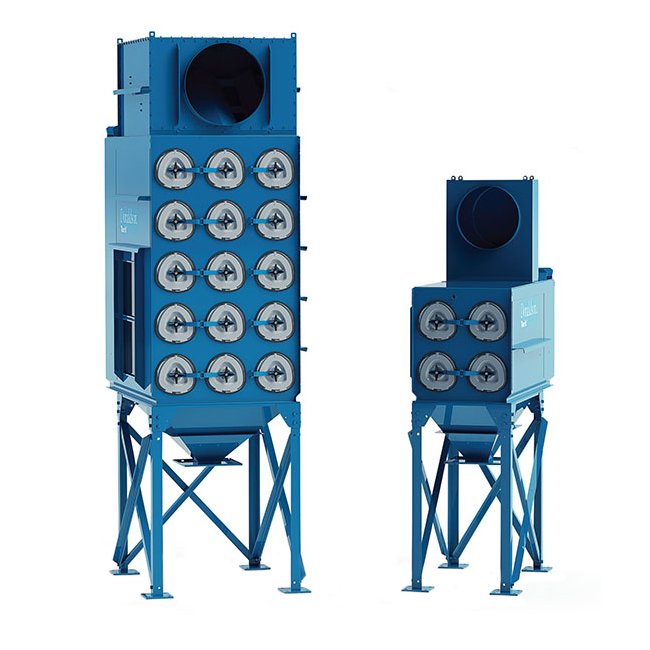

Donaldson® Torit® Downflo® Evolution 4 Dust Collector
Donaldson® Torit® Downflo® Evolution 4 Dust Collector
SKU:DOW-e8cb90
Enhance air quality and save costs with the Donaldson® Torit® Downflo® Evolution 4 Dust Collector. Ideal for industrial settings, featuring Ultra-Web® filtration technology for improved efficiency.
Regular price
$4,299.99
Regular price
Sale price
$4,299.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Evolution 4 Dust Collector
$4,299.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Evolution 4 Dust Collector
$4,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior air filtration with the Donaldson® Torit® Downflo® Evolution 4 Dust Collector. Designed to optimize dust collection efficiency, this innovative unit reduces filter replacement costs by up to 40%. Benefit from advanced Ultra-Web® nanofiber filtration technology, ensuring cleaner air for various industrial applications like food processing, welding, and more. With a robust steel construction and compliance with stringent industry standards, this collector offers exceptional performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
A smaller collector helps lower the initial purchase price, reduces filter replacement costs, and opens up valuable manufacturing floor space.This state of the art collector, coupled with Donaldson®'s industry-leading Ultra-Web® nanofiber filtration technology, is truly an intelligent design.
Applications
Dry Bulk | Food Processing | Glass | Metal Grinding | Metal Manufacturing | Pharmaceutical | Plasma Cutting | Thermal Spray | Welding
Dimensions Dimension A
110 in | 2794 mm
Dimensions Dimension B
48 in | 1219.0 mm
Dimensions Dimension C
75 in | 1905 mm
Dimensions Dimension D
24.0 in | 36.0 in | 42.0 in | 48.0 in | 610 mm | 915 mm | 1067 mm | 1219 mm
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Basic Wind Speed And Exposure C Per Interna
90 mph | 145 km/h
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Housing Construction Material
Steel
Operating Conditions Housing Construction Material Thickness
3/16 in. (4.8 mm) to 10 Gauge
Operating Conditions Housing Rating
-25 to 10 inH2O | -635 to 254 mmH2O
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Specifications Approximate Shipping Weight
1890 lb | 857 kg
Specifications Inlet Size For 24 Inch In Dimension D
10 to 16 in
Specifications Inlet Size For 36 Inch In Dimension D
17 to 24 in
Specifications Inlet Size For 42 Inch In Dimension D
26 in | 28 in | 30 in | 32 in
Specifications Inlet Size For 48 Inch In Dimension D
34 in | 36 in | 38 in | 40 in | 42 in
Specifications Number Of Filters
4
Specifications Number Of Valves
4
Specifications Ultra Web Filter Area
1016 ft² | 94.4 m²
