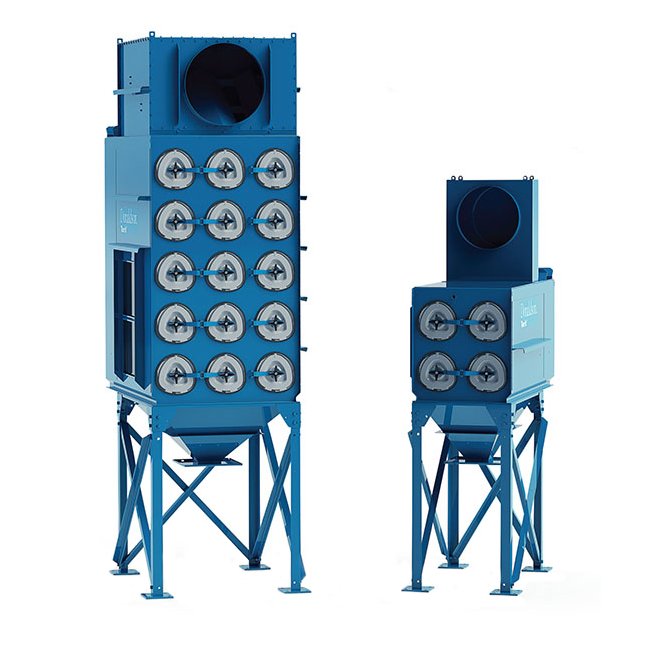

Donaldson® Torit® Downflo® Evolution 6 Collector with 130" Dimension A
Donaldson® Torit® Downflo® Evolution 6 Collector with 130" Dimension A
SKU:DOW-e0f3e4
Enhance your industrial air quality with the Donaldson® Torit® Downflo® Evolution 6 Collector. Improve efficiency, save costs, and comply with industry standards.
Regular price
$3,199.99
Regular price
Sale price
$3,199.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Evolution 6 Collector with 130" Dimension A
$3,199.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Evolution 6 Collector with 130" Dimension A
$3,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade to the Donaldson® Torit® Downflo® Evolution 6 Dust Collector for unparalleled dust filtration efficiency. Featuring 6 Ultra-Web® filters covering 1524 ft², this collector reduces filter replacement costs by up to 40%. With a sturdy steel construction and seismic rating per IBC 2009 standards, it's ideal for industrial applications like Metal Grinding, Welding, and more. Compliant with GSA requirements and FAR regulations, this collector offers a compact design to optimize manufacturing floor space, all at a competitive price.
Product Specifications
Additional Information
A smaller collector helps lower the initial purchase price, reduces filter replacement costs, and opens up valuable manufacturing floor space.This state of the art collector, coupled with Donaldson®'s industry-leading Ultra-Web® nanofiber filtration technology, is truly an intelligent design.
Applications
Dry Bulk | Food Processing | Glass | Metal Grinding | Metal Manufacturing | Pharmaceutical | Plasma Cutting | Thermal Spray | Welding
Dimensions Dimension A
130 in | 3302.0 mm
Dimensions Dimension B
48 in | 1219.0 mm
Dimensions Dimension C
75 in | 1905 mm
Dimensions Dimension D
24.0 in | 36.0 in | 42.0 in | 48.0 in | 610 mm | 915 mm | 1067 mm | 1219 mm
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Basic Wind Speed And Exposure C Per Interna
90 mph | 145 km/h
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Housing Construction Material
Steel
Operating Conditions Housing Construction Material Thickness
3/16 in. (4.8 mm) to 10 Gauge
Operating Conditions Housing Rating
-25 to 10 inH2O | -635 to 254 mmH2O
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Specifications Approximate Shipping Weight
2300 lb | 1043 kg
Specifications Inlet Size For 24 Inch In Dimension D
10 to 16 in
Specifications Inlet Size For 36 Inch In Dimension D
17 to 24 in
Specifications Inlet Size For 42 Inch In Dimension D
26 in | 28 in | 30 in | 32 in
Specifications Inlet Size For 48 Inch In Dimension D
34 in | 36 in | 38 in | 40 in | 42 in
Specifications Number Of Filters
6
Specifications Number Of Valves
6
Specifications Ultra Web Filter Area
1524 ft² | 141.6 m²
