Donaldson® Torit® Downflo® Oval 1 Dust Collector - 30.0 In Dimension A
Donaldson® Torit® Downflo® Oval 1 Dust Collector - 30.0 In Dimension A
SKU:DOW-ea66c0
Enhance air quality and maximize efficiency with the Donaldson® Torit® Downflo® Oval 1 Dust Collector, powered by Ultra-Web® technology for superior filtration.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Oval 1 Dust Collector - 30.0 In Dimension A
$5,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Oval 1 Dust Collector - 30.0 In Dimension A
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

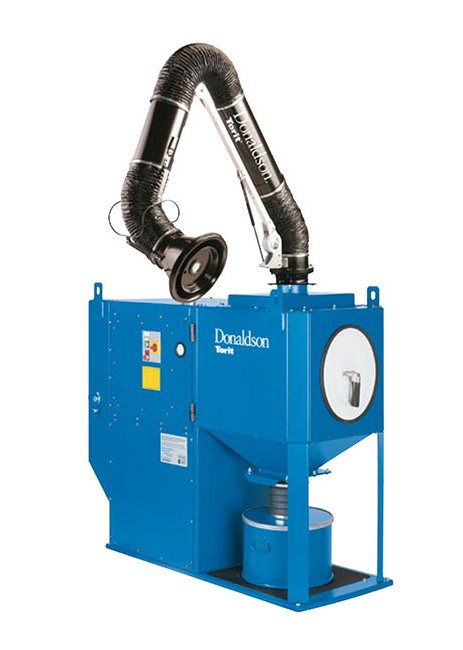

The Donaldson® Torit® Downflo® Oval 1 Dust Collector sets the industry standard with its superior filtration capacity, powered by Ultra-Web® technology for cleaner air and extended filter life. This powerhouse features a robust design, self-contained operation, and compact footprint, making it ideal for industrial settings. Reduce costs, enhance air quality, and optimize floor space with the efficiency of the Downflo® Oval 1 Dust Collector.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information

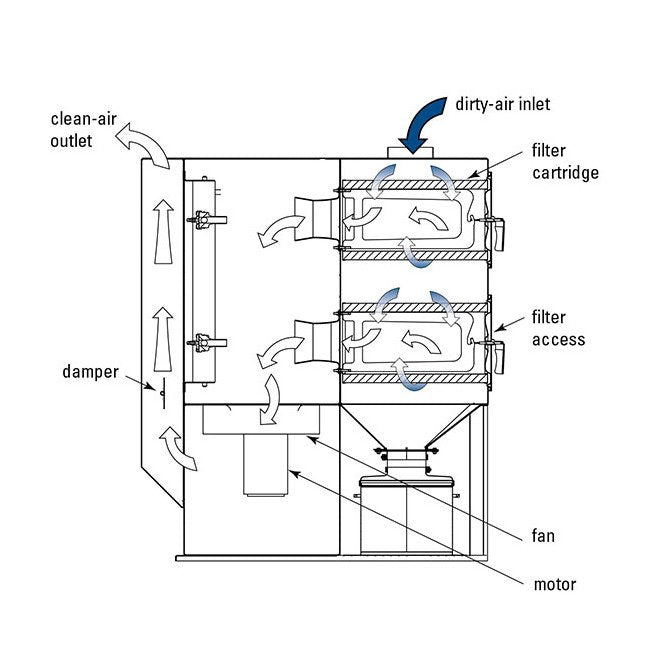

The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

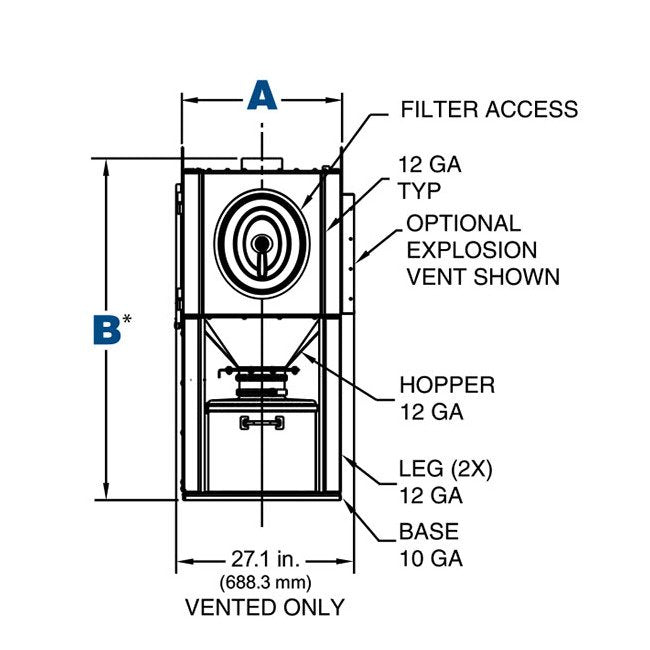

Dimensions Dimension A
30 in | 762.0 mm
Dimensions Dimension B
52 in | 1320.8 mm
Dimensions Dimension C
65.0 in | 1651.0 mm
Operating Conditions Compressed Air Required
60 psi | 4.1 bar

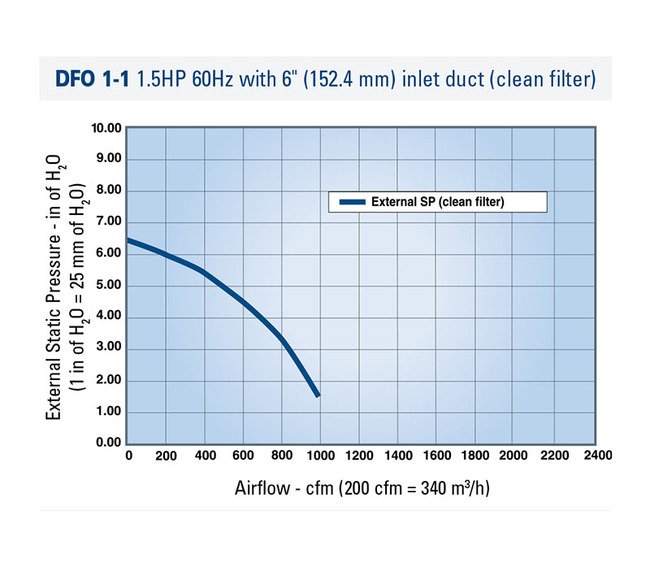

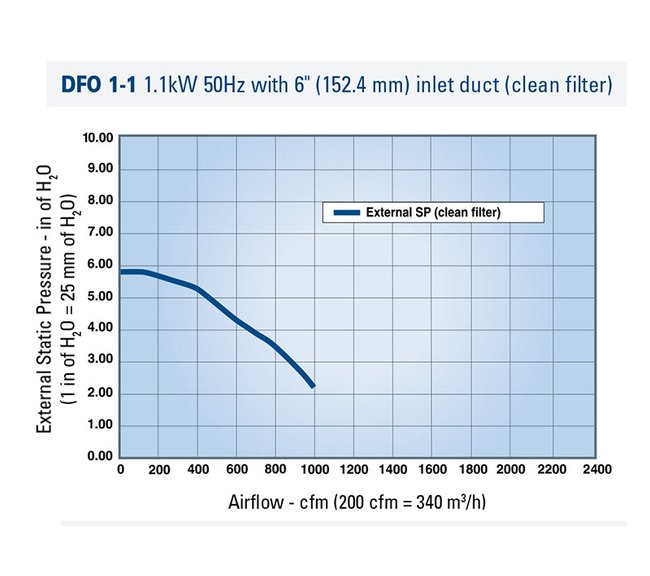

Operating Conditions External Static Pressure
1 inH2O | 25 mmH2O
Operating Conditions Horsepower
1.5 hp
Operating Conditions Housing Construction Material Thickness
12 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Sound Level
68 dBA
Operations
Incorporate several exclusive and unique featuresCompletely self-contained, "plug-and-play" type unitsPackaged with power pack, controls, silencer, damper, dust container and moreRemarkably quiet operationExceptionally compact designEasily movable through standard aisles and doorways
Specifications Approximate Shipping Weight
800 lb | 362.9 kg
Specifications Nominal Airflow
100 to 800 ft³/min | 169.9 to 1358.9 m³/h
Specifications Number Of Cartridges
1
Specifications Number Of Filters
1
Specifications Number Of Filter Rows
1
Specifications Number Of Valves
1
Specifications Ultra Web Filter Area
190 ft² | 17.7 m²
