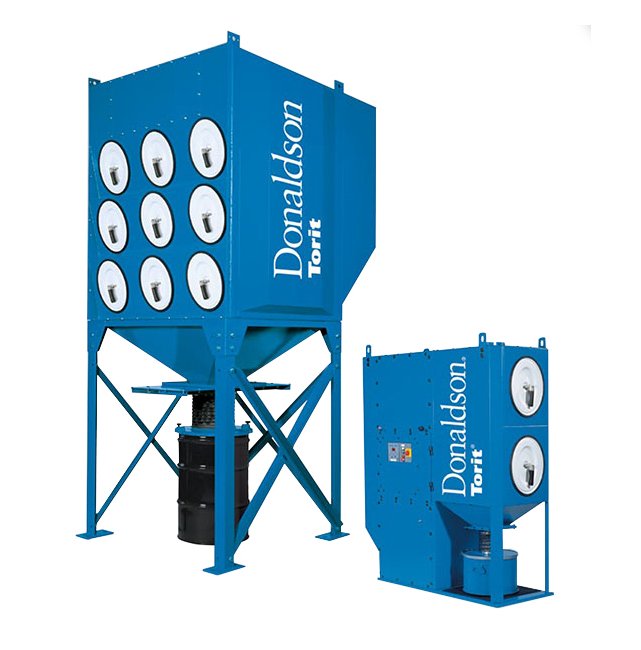

Donaldson® Torit® Downflo® Oval 112 Filters Dust Collector 285.0 in
Donaldson® Torit® Downflo® Oval 112 Filters Dust Collector 285.0 in
SKU:DOW-17d33c
Enhance air quality with the Donaldson® Torit® Downflo® Oval Dust Collector: powerful, efficient, and cost-saving solution.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Oval 112 Filters Dust Collector 285.0 in
$3,499.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Oval 112 Filters Dust Collector 285.0 in
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Downflo® Oval 112 Filters Dust Collector with 285.0-inch dimension A sets new standards in filtration capacity, airflow efficiency, and cost savings. Featuring Ultra-Web® nanofiber technology, this collector boasts 112 cartridges, 21280 ft² filter area, and 56 valves, making it ideal for titanium grinding applications. Its robust construction meets housing thickness and wind load ratings while offering seismic zone 4 compliance. Enjoy energy savings, compact design, and Extra-Life™ cleaning technology for extended filter life and minimized maintenance, making it a top choice for industrial air quality management in various settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

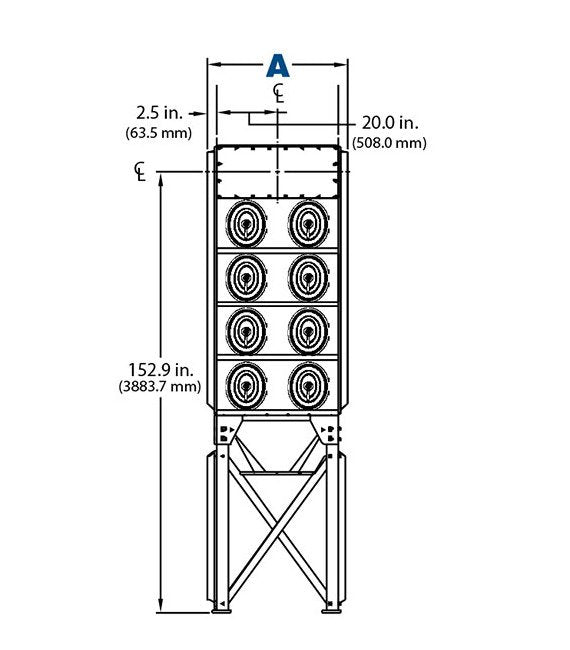

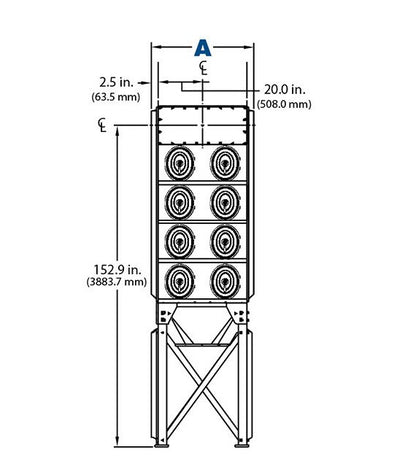

Dimensions Dimension A
285.0 in | 7239.0 mm
Dimensions Dimension B
165.1 in | 4193.5 mm
Dimensions Dimension C
85.3 in | 2166.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Applications
Titanium Grinding
Specifications Approximate Shipping Weight
14500 lb | 6577.1 kg
Specifications Nominal Airflow
10640 to 89380 ft³/min | 18073.6 to 151825.3 m³/h
Specifications Number Of Cartridges
112
Specifications Number Of Filters
112
Specifications Number Of Filter Rows
4
Specifications Number Of Valves
56
Specifications Ultra Web Filter Area
21280 ft² | 1976.9 m²
