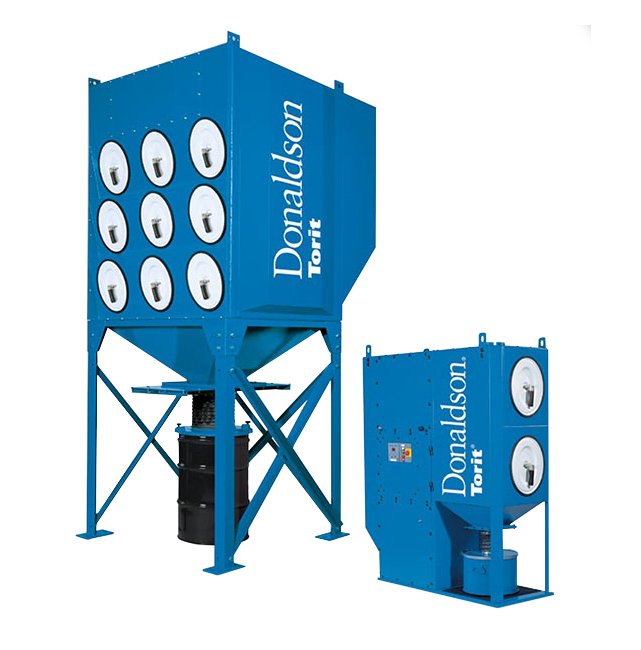

Donaldson® Torit® Downflo® Oval 12 Dust Collector, 65.0in
Donaldson® Torit® Downflo® Oval 12 Dust Collector, 65.0in
SKU:DOW-a6c3b2
Upgrade to the Donaldson® Torit® Downflo® Oval 12 Dust Collector for cleaner air, extended filter life, and cost savings in industrial dust collection.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Oval 12 Dust Collector, 65.0in
$7,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Oval 12 Dust Collector, 65.0in
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Downflo® Oval 12 Dust Collector with its cutting-edge Ultra-Web® nanofiber filtration technology offers exceptional filtration capacity, extended filter life, and substantial cost savings. With 12 cartridges and a filter area of 2280 ft², it ensures clean air and efficient dust collection. Its sturdy construction, compact design, and customizable options make it a top choice for industrial settings, providing superior performance and energy savings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

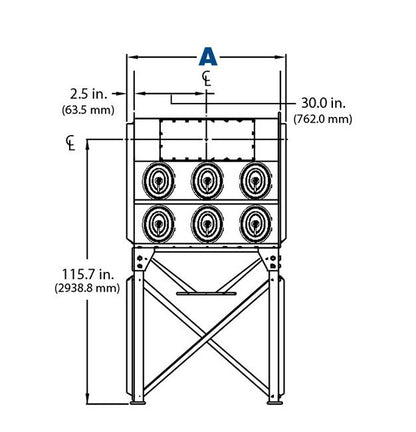

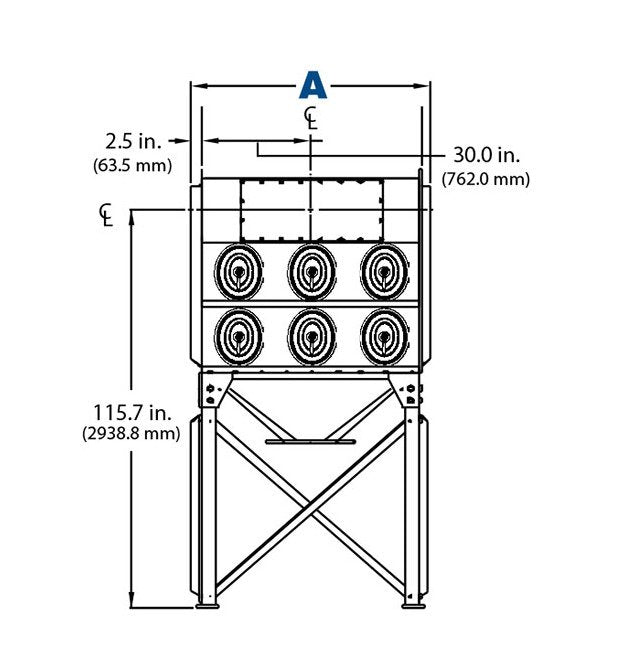

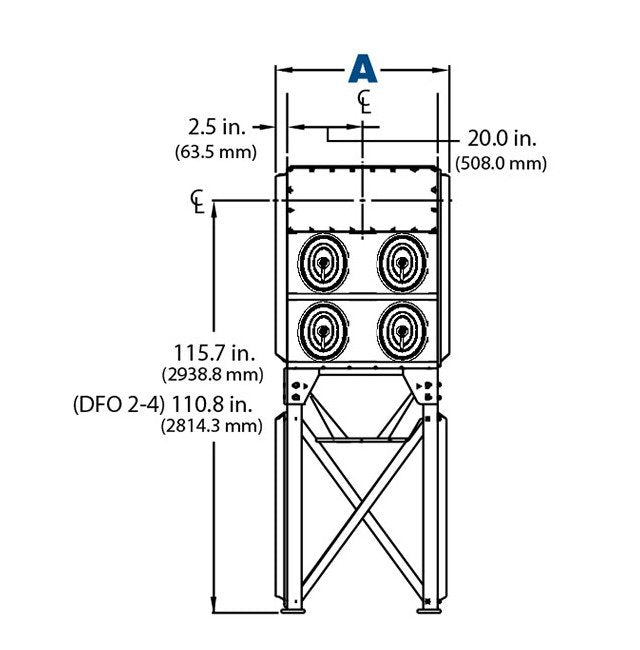

Dimensions Dimension A
65.0 in | 1651.0 mm
Dimensions Dimension B
127.8 in | 3246.1 mm
Dimensions Dimension C
84.0 in | 2133.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Approximate Shipping Weight
2100 lb | 952.5 kg
Specifications Nominal Airflow
1140 to 9580 ft³/min | 1936.5 to 16273.1 m³/h
Specifications Number Of Cartridges
12
Specifications Number Of Filters
12
Specifications Number Of Filter Rows
2
Specifications Number Of Valves
6
Specifications Ultra Web Filter Area
2280 ft² | 211.8 m²
