Donaldson® Torit® Downflo® Oval 128 Dust Collector - 325.0 in Dimension A
Donaldson® Torit® Downflo® Oval 128 Dust Collector - 325.0 in Dimension A
SKU:DOW-5db5a5
High-performance Downflo® Oval 128 Dust Collector with 325.0" Dimension A. Unrivaled filtration, cost savings, and compliance.
Regular price
$22,500.00
Regular price
Sale price
$22,500.00
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Oval 128 Dust Collector - 325.0 in Dimension A
$22,500.00
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Oval 128 Dust Collector - 325.0 in Dimension A
$22,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

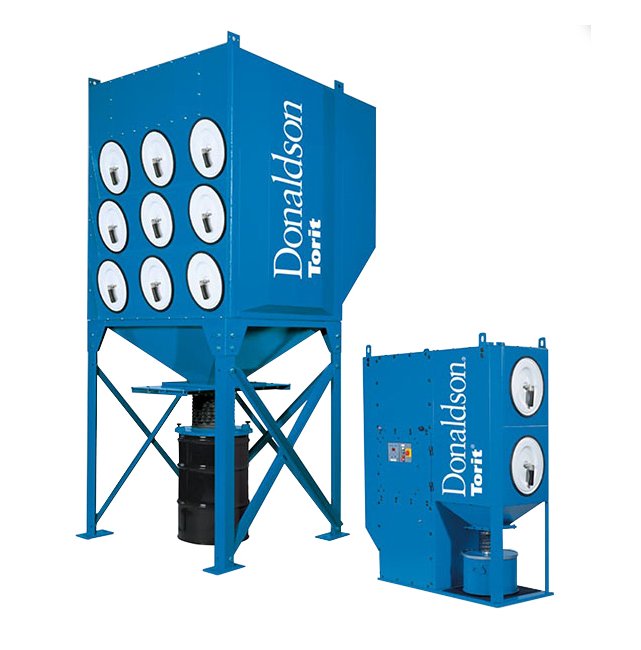

The Donaldson® Torit® Downflo® Oval 128 Dust Collector with a Dimension A of 325.0 inches sets the industry standard for high-performance filtration. Featuring 128 cartridges and proprietary Ultra-Web® nanofiber technology, it offers unmatched air cleaning efficiency, extended filter lifespan, and substantial cost savings. With robust construction, energy-efficient operation, and customizable options, this collector optimizes manufacturing environments while meeting stringent institutional procurement standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

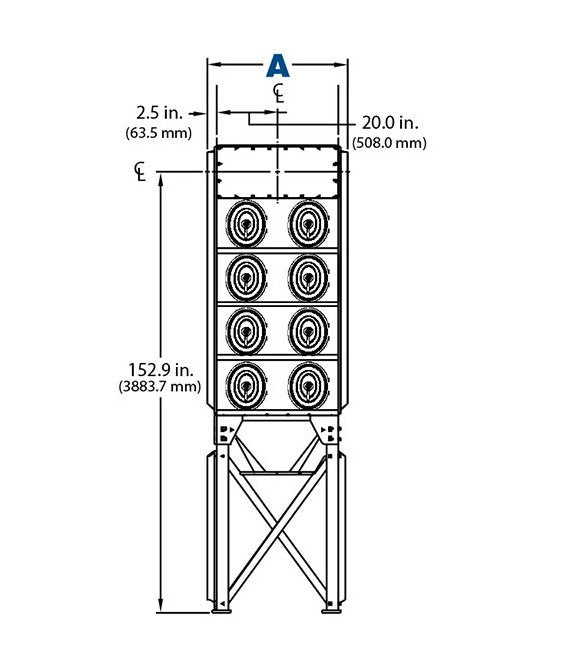

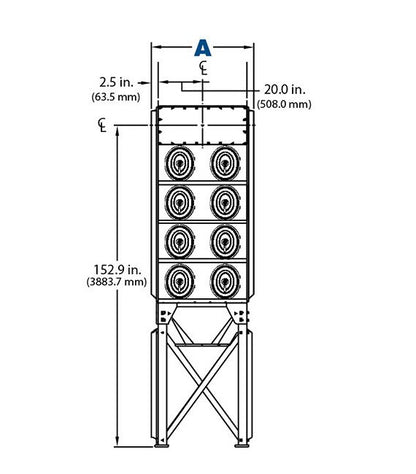

Dimensions Dimension A
325.0 in | 8255.0 mm
Dimensions Dimension B
165.1 in | 4193.5 mm
Dimensions Dimension C
85.3 in | 2166.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Approximate Shipping Weight
16100 lb | 7302.8 kg
Specifications Nominal Airflow
12160 to 102150 ft³/min | 20655.6 to 173517.1 m³/h
Specifications Number Of Cartridges
128
Specifications Number Of Filters
128
Specifications Number Of Filter Rows
4
Specifications Number Of Valves
64
Specifications Ultra Web Filter Area
24320 ft² | 2259.3 m²
