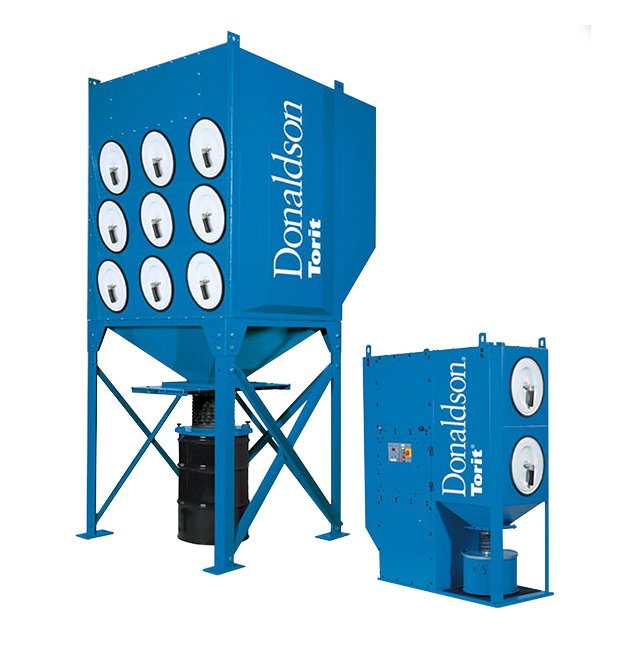

Donaldson® Torit® Downflo® Oval 16 Dust Collector, 85.0in Dimension A
Donaldson® Torit® Downflo® Oval 16 Dust Collector, 85.0in Dimension A
SKU:DOW-7f0f8a
Enhance air quality with the Donaldson® Torit® Downflo® Oval 16 Dust Collector - superior filtration, extended filter life, and cost savings.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Oval 16 Dust Collector, 85.0in Dimension A
$7,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Oval 16 Dust Collector, 85.0in Dimension A
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Downflo® Oval 16 Dust Collector with 85.0in Dimension A is a high-performance solution catering to the stringent filtration needs of industrial and institutional settings. Featuring proprietary Ultra-Web® nanofiber filtration technology, this model offers up to 25% more filtration capacity compared to similar-sized collectors, delivering cleaner air, prolonged filter life, and substantial cost savings. Its robust design, compact footprint, and energy-efficient operation make it an ideal choice for enhancing air quality and optimizing operational efficiencies in manufacturing facilities.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

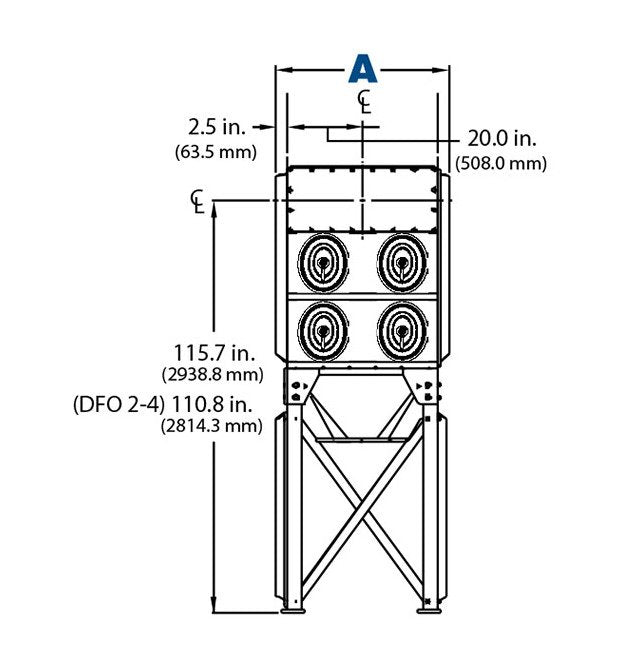

Dimensions Dimension A
85.0 in | 2159.0 mm
Dimensions Dimension B
127.8 in | 3246.1 mm
Dimensions Dimension C
84.0 in | 2133.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Approximate Shipping Weight
3100 lb | 1406.1 kg
Specifications Nominal Airflow
1520 to 12770 ft³/min | 2581.9 to 21691.8 m³/h
Specifications Number Of Cartridges
16
Specifications Number Of Filters
16
Specifications Number Of Filter Rows
2
Specifications Number Of Valves
8
Specifications Ultra Web Filter Area
3040 ft² | 282.4 m²
