Donaldson® Torit® Downflo® Oval 2 Filters Dust Collector
Donaldson® Torit® Downflo® Oval 2 Filters Dust Collector
SKU:DOW-3c46a0
Revolutionize dust collection with Donaldson®'s high-capacity Downflo® Oval 2 Filters Dust Collector.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Oval 2 Filters Dust Collector
$6,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Oval 2 Filters Dust Collector
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Downflo® Oval 2 Filters Dust Collector sets a new standard in high-performance dust collection. Featuring proprietary Ultra-Web® nanofiber filtration technology, this unit offers up to 25% more filtration capacity than other same-sized collectors. With an Ultra-Web® Filter Area of 380 ft², this collector ensures cleaner air, extended filter life, and significant cost savings. Its compact design, self-contained operation, and quiet performance make it ideal for various applications, including handling paint pigment dust.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

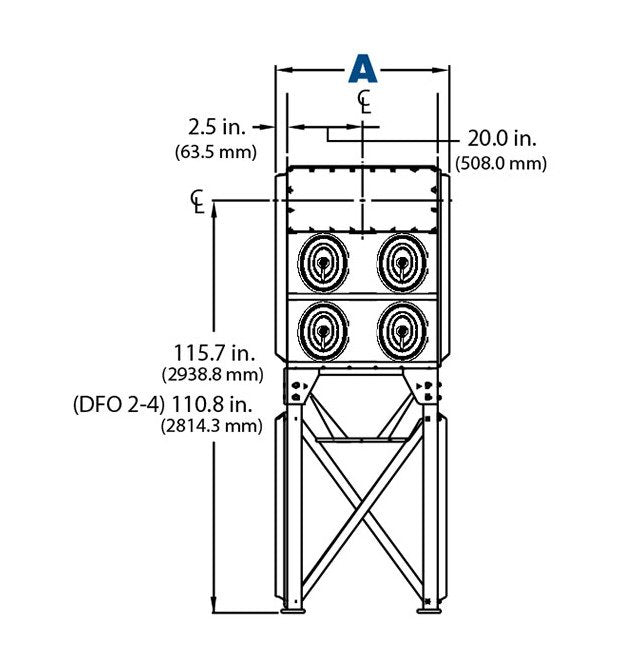

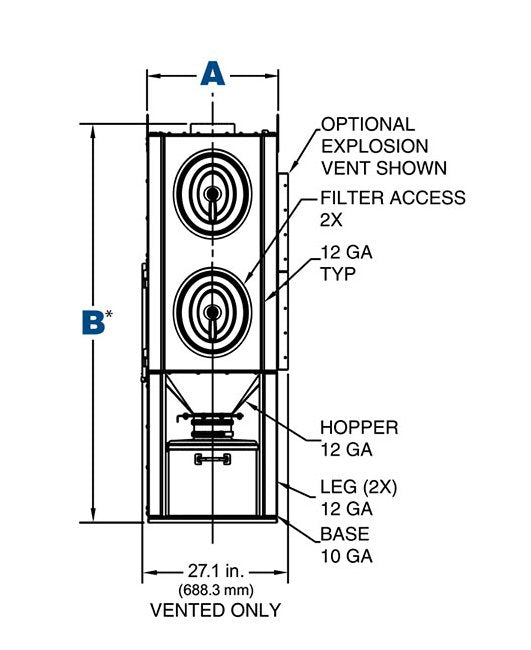

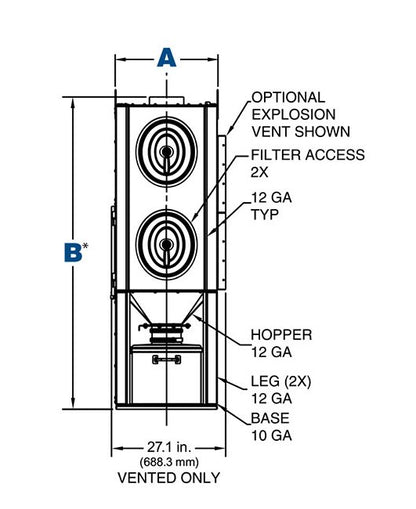

Dimensions Dimension A
30 in | 762.0 mm
Dimensions Dimension B
74.0 in | 1879.6 mm
Dimensions Dimension C
65.0 in | 1651.0 mm
Operating Conditions Compressed Air Required
60 psi | 4.1 bar

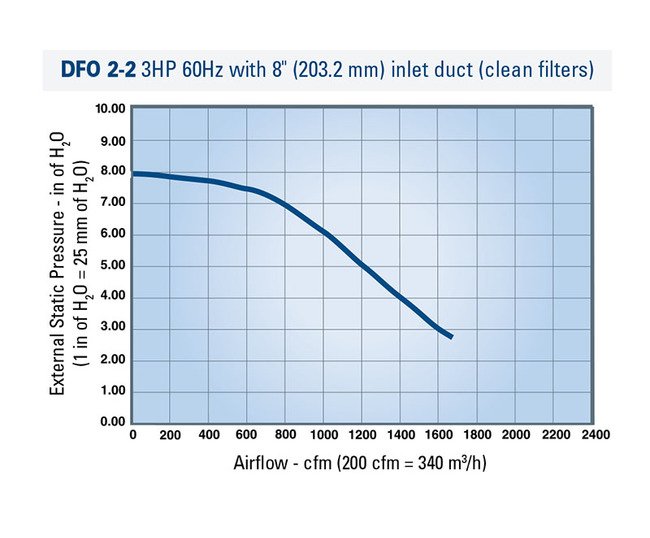

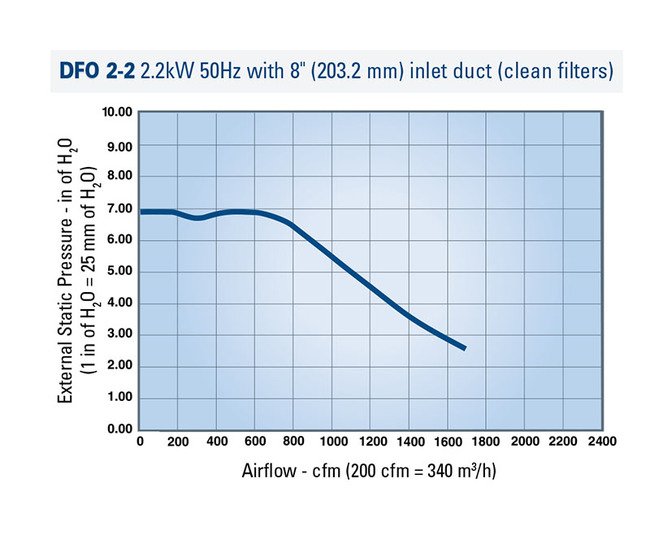

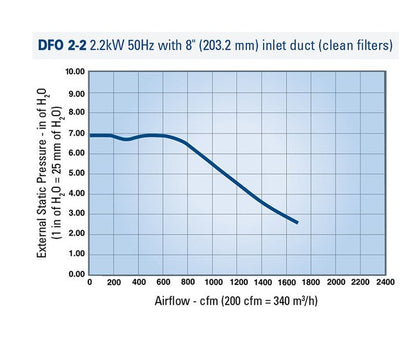

Operating Conditions External Static Pressure
1 inH2O | 25 mmH2O
Operating Conditions Horsepower
3 hp
Operating Conditions Housing Construction Material Thickness
12 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Sound Level
68 dBA
Operations
Incorporate several exclusive and unique featuresCompletely self-contained, "plug-and-play" type unitsPackaged with power pack, controls, silencer, damper, dust container and moreRemarkably quiet operationExceptionally compact designEasily movable through standard aisles and doorways
Specifications Applications
Paint Pigment Dust
Specifications Approximate Shipping Weight
100 lb | 453.6 kg
Specifications Nominal Airflow
200 to 1600 ft³/min | 339.7 to 2717.8 m³/h
Specifications Number Of Cartridges
2
Specifications Number Of Filters
2
Specifications Number Of Filter Rows
2
Specifications Number Of Valves
2
Specifications Ultra Web Filter Area
380 ft² | 35.3 m²
