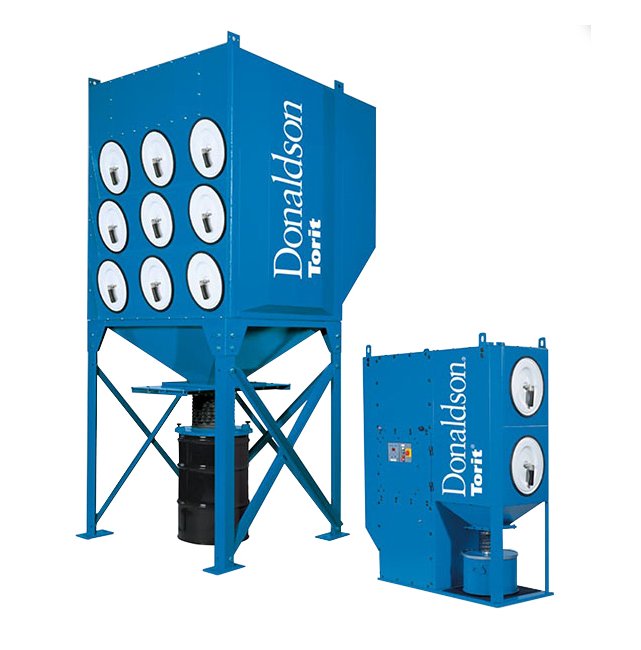

Donaldson® Torit® Downflo® Oval 48 Dust Collector with 125.0 in Dimension A
Donaldson® Torit® Downflo® Oval 48 Dust Collector with 125.0 in Dimension A
SKU:DOW-2f23b6
Experience superior air filtration with Donaldson® Torit® Downflo® Oval 48 Dust Collector, featuring Ultra-Web® nanofiber technology for cleaner air and longer filter life.
Regular price
$15,899.99
Regular price
Sale price
$15,899.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Oval 48 Dust Collector with 125.0 in Dimension A
$15,899.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Oval 48 Dust Collector with 125.0 in Dimension A
$15,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Downflo® Oval 48 Dust Collector is an industry-leading solution designed for high-performance dust filtration. Featuring 48 cartridges powered by Ultra-Web® nanofiber technology, this collector provides exceptional filtration capacity, cleaner air, and extended filter life. With a robust construction and compact design, it offers significant energy savings, reducing operational costs while maintaining superior performance. Ideal for metal grinding applications, this dust collector ensures efficient and cost-effective air purification in industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

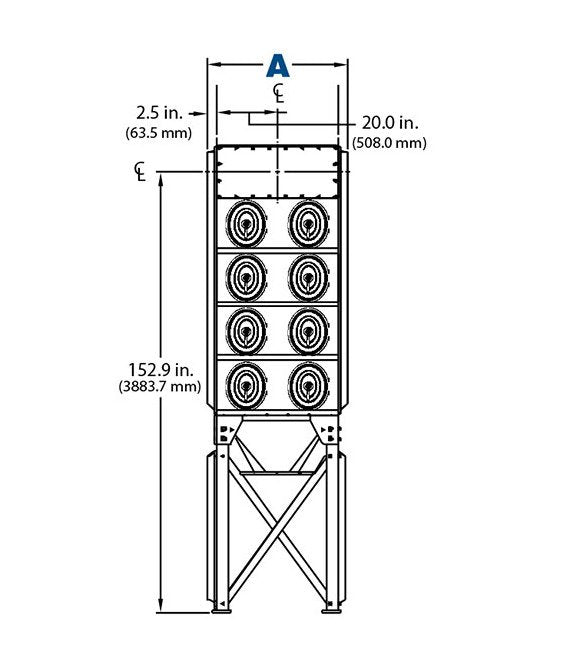

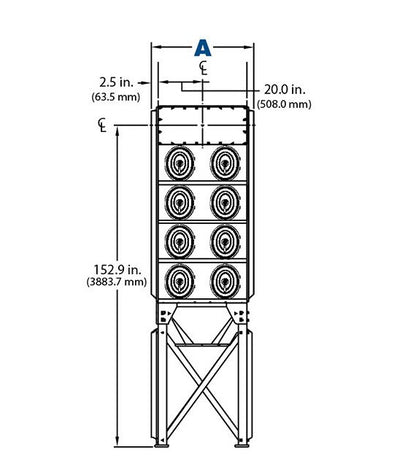

Dimensions Dimension A
125.0 in | 3175.0 mm
Dimensions Dimension B
165.1 in | 4193.5 mm
Dimensions Dimension C
85.3 in | 2166.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Applications
Metal Grinding
Specifications Approximate Shipping Weight
7400 lb | 3356.6 kg
Specifications Nominal Airflow
4560 to 38300 ft³/min | 7745.8 to 65058.3 m³/h
Specifications Number Of Cartridges
48
Specifications Number Of Filters
48
Specifications Number Of Filter Rows
4
Specifications Number Of Valves
24
Specifications Ultra Web Filter Area
9120 ft² | 847.2 m²
