Donaldson® Torit® Downflo® Oval 48 Dust Collector with 165.0" Dimension A
Donaldson® Torit® Downflo® Oval 48 Dust Collector with 165.0" Dimension A
SKU:DOW-cab921
Maximize filtration efficiency with the Donaldson® Torit® Downflo® Oval 48 Dust Collector – cleaner air, longer filter life, and significant cost savings.
Regular price
$13,599.99
Regular price
Sale price
$13,599.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Oval 48 Dust Collector with 165.0" Dimension A
$13,599.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Oval 48 Dust Collector with 165.0" Dimension A
$13,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

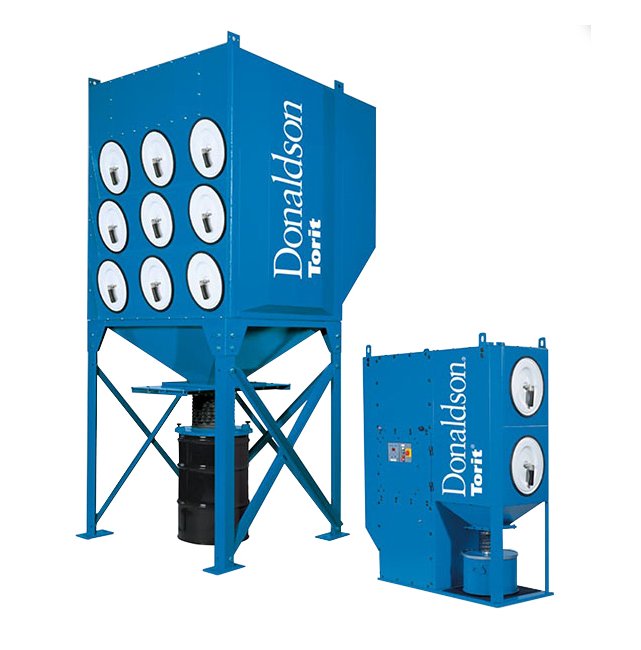

The Donaldson® Torit® Downflo® Oval 48 Dust Collector is a high-performance solution designed to exceed filtration needs. With 48 cartridges and proprietary Ultra-Web® nanofiber technology, it offers up to 25% more filtration capacity. This collector ensures cleaner air, extends filter life, and reduces costs significantly. Its compact design, Extra-Life™ cleaning technology, and efficient airflow management make it ideal for industrial settings, delivering exceptional energy savings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

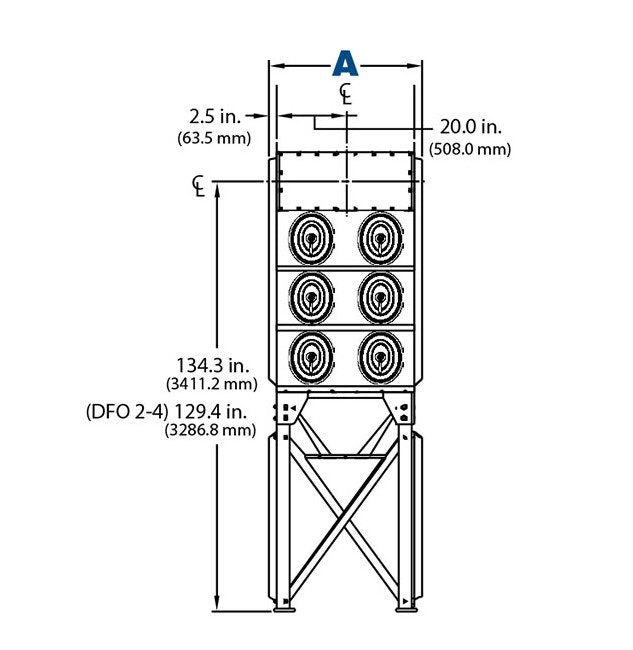

Dimensions Dimension A
165.0 in | 4191.0 mm
Dimensions Dimension B
146.5 in | 3721.1 mm
Dimensions Dimension C
85.3 in | 2166.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Approximate Shipping Weight
8100 lb | 3674.1 kg
Specifications Nominal Airflow
4560 to 38300 ft³/min | 7745.8 to 65058.3 m³/h
Specifications Number Of Cartridges
48
Specifications Number Of Filters
48
Specifications Number Of Filter Rows
3
Specifications Number Of Valves
24
Specifications Ultra Web Filter Area
9120 ft² | 847.2 m²
