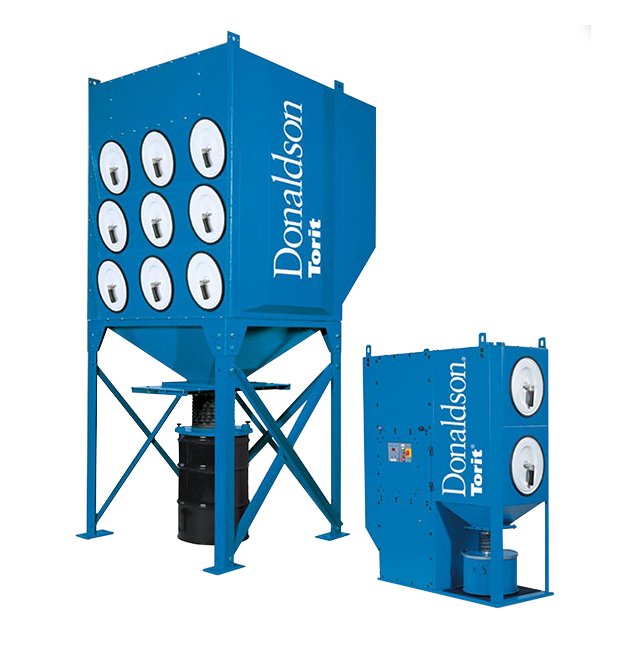

Donaldson® Torit® Downflo® Oval 60 Dust Collector
Donaldson® Torit® Downflo® Oval 60 Dust Collector
SKU:DOW-74869f
The ultimate filtration solution for industrial air quality with advanced Ultra-Web® technology and cost-saving benefits.
Regular price
$12,999.99
Regular price
Sale price
$12,999.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Oval 60 Dust Collector
$12,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Oval 60 Dust Collector
$12,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Downflo® Oval 60 Dust Collector is a high-performance solution for industrial air filtration. With 60 cartridges and Ultra-Web® nanofiber technology, it offers superior filtration efficiency, extending filter life and reducing maintenance costs. This dust collector is designed for optimal airflow, energy efficiency, and space savings, making it a cost-effective and reliable choice for various industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

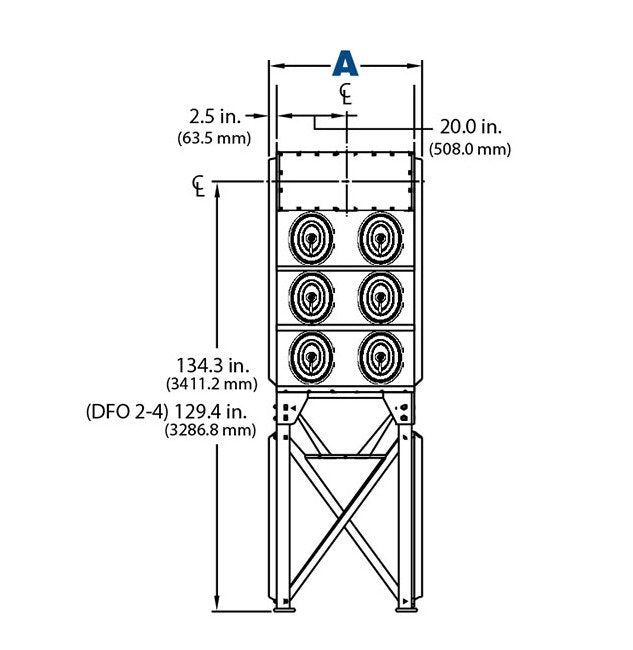

Dimensions Dimension A
205.0 in | 5207.0 mm
Dimensions Dimension B
146.5 in | 3721.1 mm
Dimensions Dimension C
85.3 in | 2166.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Approximate Shipping Weight
10100 lb | 4581.3 kg
Specifications Nominal Airflow
5700 to 47880 ft³/min | 9682.3 to 81331.4 m³/h
Specifications Number Of Cartridges
60
Specifications Number Of Filters
60
Specifications Number Of Filter Rows
3
Specifications Number Of Valves
30
Specifications Ultra Web Filter Area
11400 ft² | 1059.1 m²
