Donaldson® Torit® Downflo® Oval 64 Dust Collector with 165.0" Dimension A
Donaldson® Torit® Downflo® Oval 64 Dust Collector with 165.0" Dimension A
SKU:DOW-b7dd3f
High-performance Donaldson® Torit® Downflo® Oval 64 Dust Collector with Ultra-Web® filtration technology for cleaner air and extended filter life.
Regular price
$14,999.00
Regular price
Sale price
$14,999.00
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Oval 64 Dust Collector with 165.0" Dimension A
$14,999.00
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Oval 64 Dust Collector with 165.0" Dimension A
$14,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

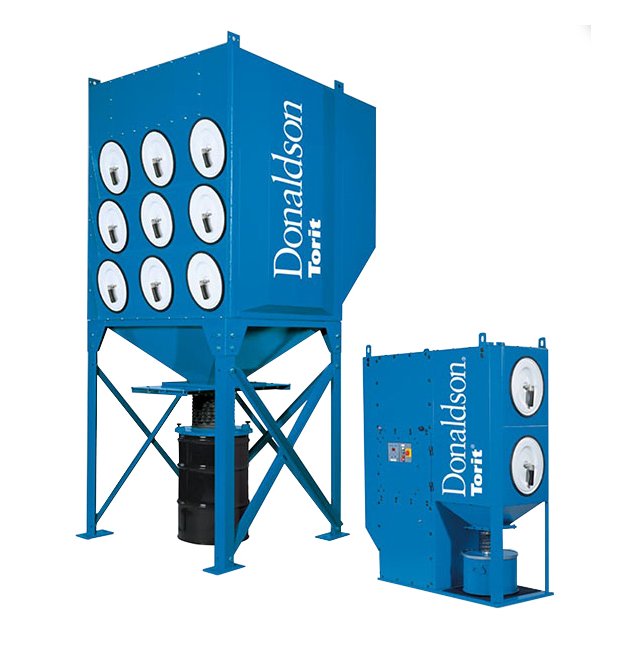

The Donaldson® Torit® Downflo® Oval 64 Dust Collector sets the standard for high performance in dust filtration. With 25% more filtration capacity than comparable collectors, powered by Ultra-Web® nanofiber technology, it ensures cleaner air, extended filter life, and substantial cost savings. Featuring an innovative cabinet design, Extra-Life™ cleaning technology, and compact footprint, this collector maximizes airflow efficiency without compromising filters. Benefit from quality construction, customizable sizing, and energy savings, making this collector ideal for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

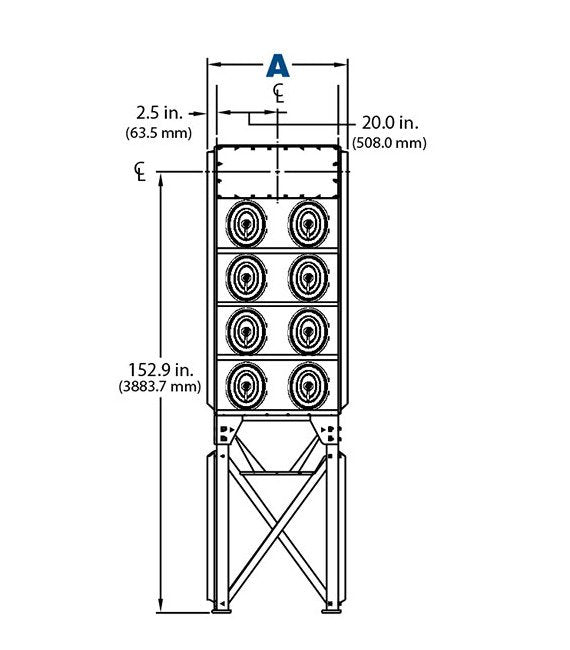

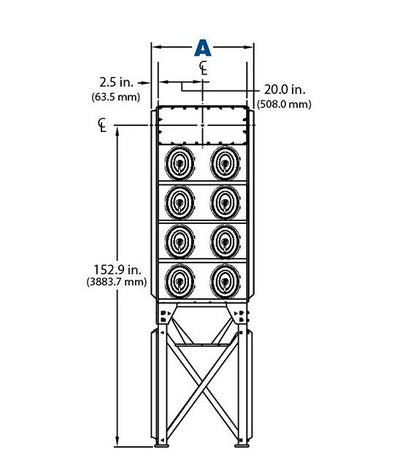

Dimensions Dimension A
165.0 in | 4191.0 mm
Dimensions Dimension B
165.1 in | 4193.5 mm
Dimensions Dimension C
85.3 in | 2166.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Approximate Shipping Weight
9100 lb | 4127.7 kg
Specifications Nominal Airflow
6080 to 51070 ft³/min | 10327.8 to 86750.1 m³/h
Specifications Number Of Cartridges
64
Specifications Number Of Filters
64
Specifications Number Of Filter Rows
4
Specifications Number Of Valves
32
Specifications Ultra Web Filter Area
12160 ft² | 1129.7 m²
