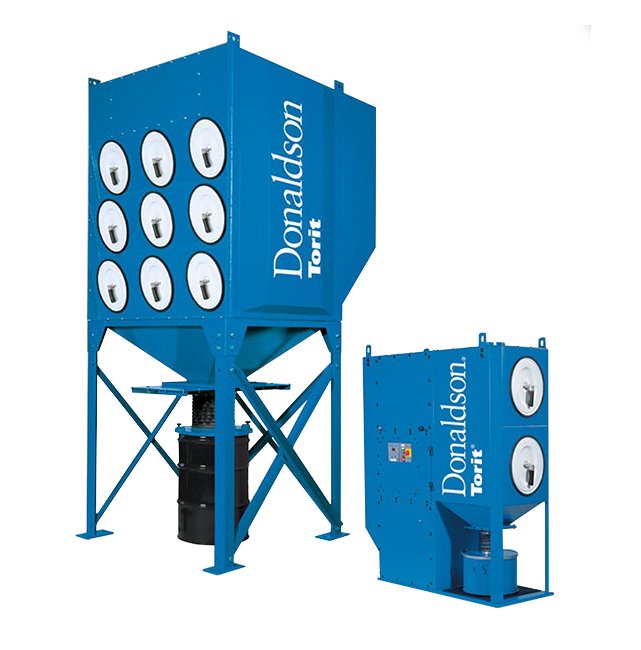

The Donaldson® Torit® Downflo® Oval 72 Dust Collector sets the standard for high-performance air filtration needs. With 72 cartridges and Ultra-Web® nanofiber filtration technology, it offers up to 25% more filtration capacity, delivering cleaner air, extended filter life, and significant cost savings. Featuring 13680 ft² of Ultra-Web® Filter Area, 36 valves, and a robust construction, this dust collector ensures superior performance in industrial settings. The compact design and customizable options make it an ideal choice for efficient and cost-effective air filtration solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

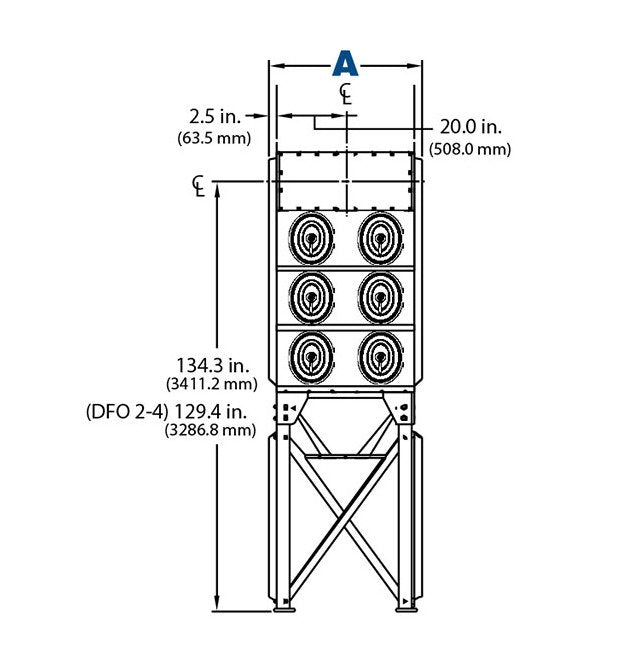

Dimensions Dimension A
245.0 in | 6223.0 mm
Dimensions Dimension B
146.5 in | 3721.1 mm
Dimensions Dimension C
85.3 in | 2166.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Approximate Shipping Weight
12100 lb | 5488.5 kg
Specifications Nominal Airflow
6840 to 57460 ft³/min | 11618.8 to 97604.4 m³/h
Specifications Number Of Cartridges
72
Specifications Number Of Filters
72
Specifications Number Of Filter Rows
3
Specifications Number Of Valves
36
Specifications Ultra Web Filter Area
13680 ft² | 1270.9 m²
