Donaldson® Torit® Downflo® Oval 8 Filters Dust Collector - 45.0 in Dimension A
Donaldson® Torit® Downflo® Oval 8 Filters Dust Collector - 45.0 in Dimension A
SKU:DOW-5569d6
High-performance Donaldson® Torit® Downflo® Oval 8 Filters Dust Collector for superior air filtration in institutional settings.
Regular price
$7,999.00
Regular price
Sale price
$7,999.00
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Oval 8 Filters Dust Collector - 45.0 in Dimension A
$7,999.00
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Oval 8 Filters Dust Collector - 45.0 in Dimension A
$7,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

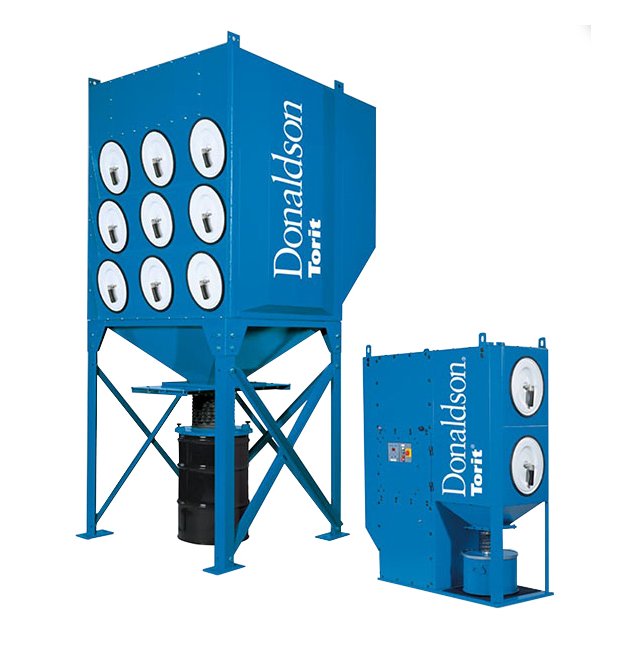

The Donaldson® Torit® Downflo® Oval 8 Filters Dust Collector is a high-performance solution designed for superior filtration capacity and extended filter life. Powered by Ultra-Web® nanofiber technology, this collector delivers cleaner air and substantial cost savings. With features like a compact design, Extra-Life™ cleaning technology, and energy-efficient operation, it optimizes performance while minimizing maintenance needs. This industrial-grade dust collector is ideal for institutional and government buyers seeking reliable, compliant, and efficient air filtration solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

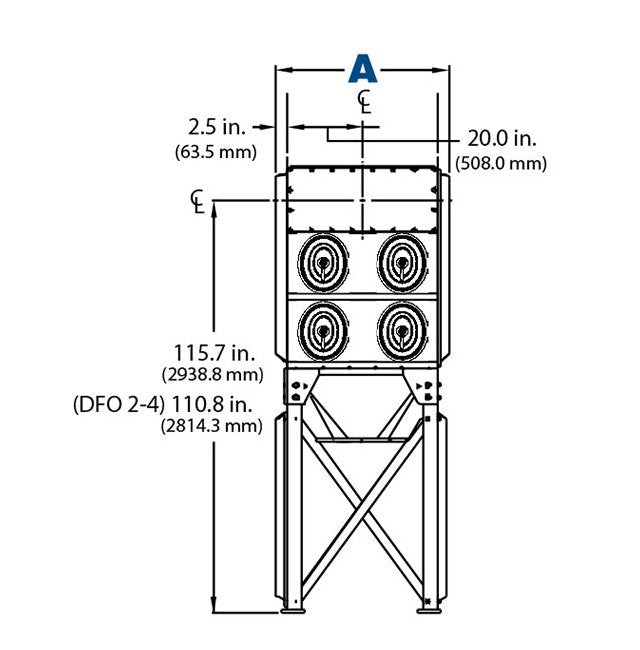

Dimensions Dimension A
45.0 in | 1143.0 mm
Dimensions Dimension B
127.8 in | 3246.1 mm
Dimensions Dimension C
84.0 in | 2133.6 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Approximate Shipping Weight
1600 lb | 725.7 kg
Specifications Nominal Airflow
760 to 6380 ft³/min | 1291.0 to 10837.4 m³/h
Specifications Number Of Cartridges
8
Specifications Number Of Filters
8
Specifications Number Of Filter Rows
2
Specifications Number Of Valves
4
Specifications Ultra Web Filter Area
1520 ft² | 141.2 m²
