Donaldson® Torit® Downflo® Workstation 11000 CFM Dust Collector
Donaldson® Torit® Downflo® Workstation 11000 CFM Dust Collector
SKU:DOW-045aaa
Versatile Donaldson® Torit® Downflo® Workstation 11000 CFM Dust Collector for cleaner air in metalworking and woodworking facilities.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Workstation 11000 CFM Dust Collector
$7,499.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Workstation 11000 CFM Dust Collector
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

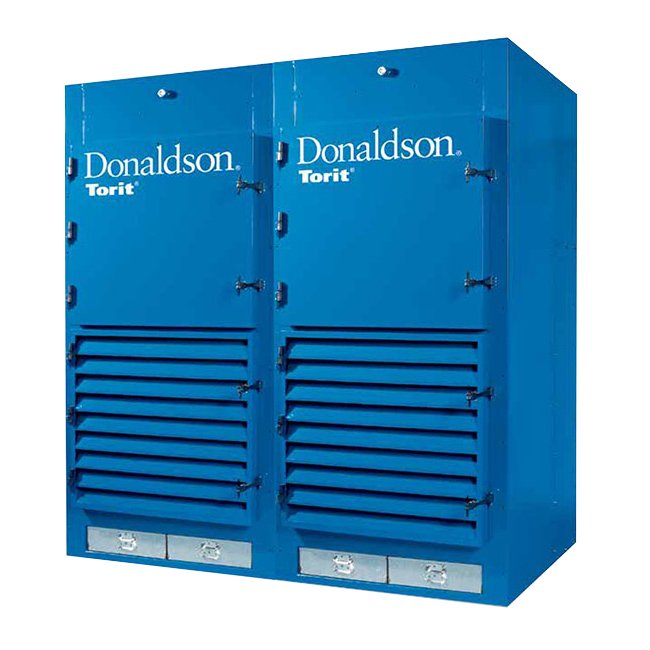

The Donaldson® Torit® Downflo® Workstation 11000 Cubic Feet Per Minute (CFM) Dust Collector is a versatile and efficient solution designed for in-plant areas with dirty or noisy operations. With 12 filters and proprietary Ultra-Web® filter media, this workstation ensures cleaner air for metalworking, woodworking, and various process applications. Its ledgeless construction minimizes dust buildup and the reversible louver inlets enhance performance. Energy-saving features and easy filter access make maintenance hassle-free. Backed by a 10-year warranty, this workstation is built to deliver high filtration efficiency and compliance with industry standards.
Product Specifications
Additional Information
The Downflo® WorkStation's advantages are found in the collector's exclusive design and proprietary components. Featuring a ledgeless design in combination with proprietary Ultra-Web® filter media and ExtraLife™ cleaning technology, the DWS delivers exceptional performance in metalworking, woodworking, and process applications where high filtration efficiency and ledgeless construction is often a requirement.

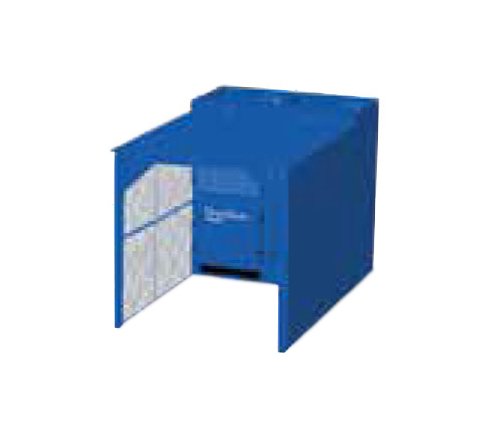

Design Options Canopy With Side Shields
90 x 36 x 90 in | 2286 x 914 x 2286 mm

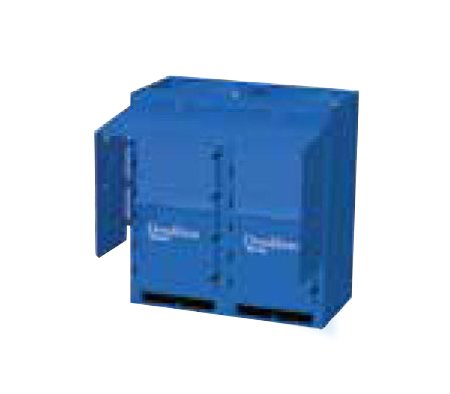

Design Options Hard Wall Acoustic Panels
90 x 90 x 90 in | 2286 x 2286 x 2286 mm
Design Options Hard Wall Galvanized Panels
90 x 90 x 90 in | 2286 x 2286 x 2286 mm
Design Options Note For Design Options
Dimensions are width x depth x height
Design Options Soft Wall Acoustical Curtains
135 x 90 x 90 in | 3429 x 2286 x 2286 mm
Design Options Soft Wall Weld Curtains
135 x 90 x 90 in | 3429 x 2286 x 2286 mm

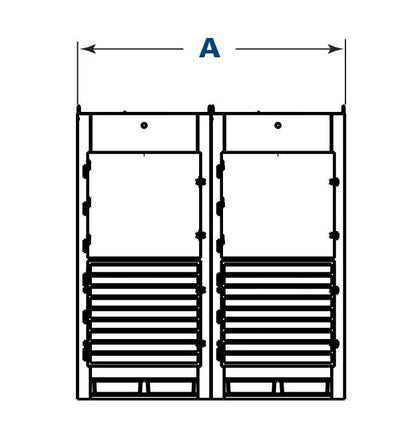

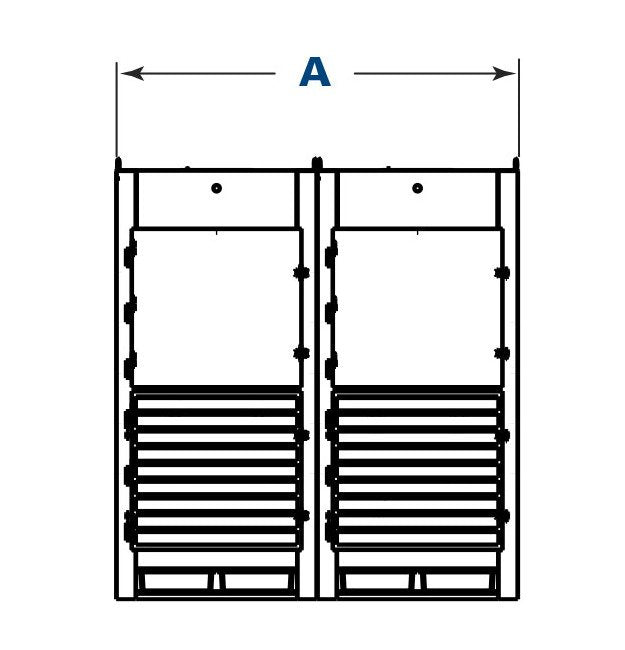

Dimensions Dimension A
90 in | 2286.0 mm

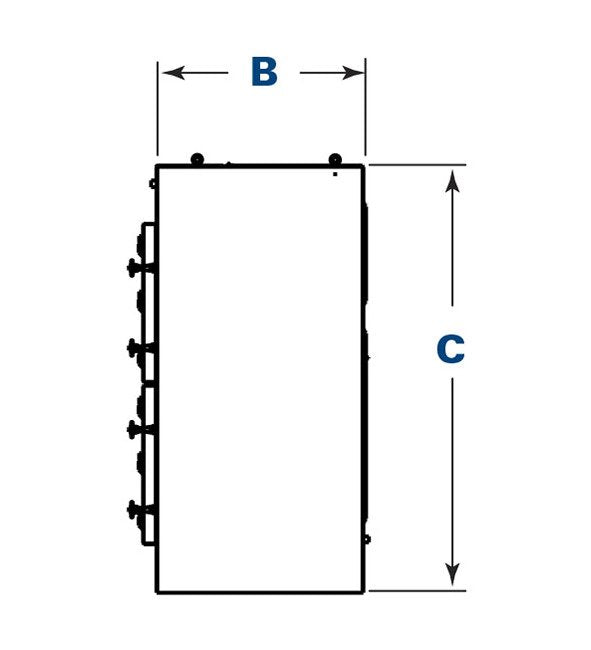

Dimensions Dimension B
47.8 in | 1214.1 mm
Dimensions Dimension C
96.0 in | 2438.4 mm
Features
Flexible, modular, self-contained workstationsProprietary Ultra-Web® cartridge filters provide cleaner air longerEasy filter access requires no toolsNo hoods or ductwork requiredEnergy savings - recirculate clean air and reduce the need for costly make-up airLedgeless construction minimizes dust build up inside the collectorReversible louver inlets
Operations
8 standard model sizesCustomized sizes availableMany options and accessories
Purpose
Most basic booth/hooding arrangementLightweight structure for use under most light conditionsLightweight structure for moderate sound controlHeavy-duty structure/smooth walls for easy washdownHeavy-duty structure for higher sound control
Specifications Nominal Airflow
11000 ft³/min | 18685 m³/h
Specifications Number Of Drawers
4
Specifications Number Of Filters
12
Specifications Number Of Modules
2
Specifications Number Of Valves
12
Specifications Shipping Weight
2700 lb | 1224.7 kg
Specifications Ultra Web Filter Area
2280 ft² | 211.8 m²
Specifications Warranty
10 years
