Donaldson® Torit® Downflo® Workstation Dust Collector - 16500 ft³/min Airflow
Donaldson® Torit® Downflo® Workstation Dust Collector - 16500 ft³/min Airflow
SKU:DOW-e3e178
Optimal air filtration with Donaldson® Torit® Downflo® Workstation Dust Collector - 16500 ft³/min. Energy-efficient and durable design.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Donaldson® Torit® Downflo® Workstation Dust Collector - 16500 ft³/min Airflow
$8,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Downflo® Workstation Dust Collector - 16500 ft³/min Airflow
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

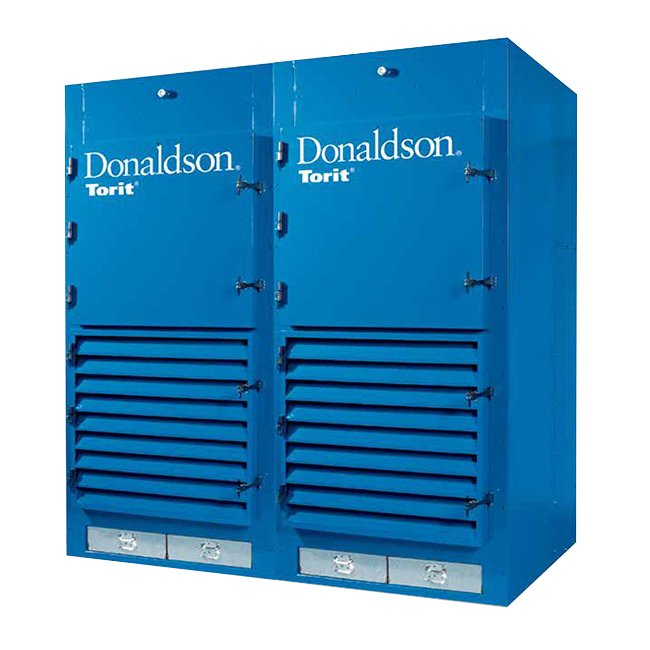

The Donaldson® Torit® Downflo® Workstation 16500 Cubic Feet Per Minute (ft³/min) Nominal Airflow Dust Collector is a versatile solution designed for in-plant areas with dirty and/or noisy operations. With 18 Ultra-Web® filters and a sturdy construction, this workstation offers exceptional filtration efficiency and ease of maintenance. Its proprietary components, including Ultra-Web® filter media and ExtraLife™ cleaning technology, ensure cleaner air longer and comply with stringent industry standards for metalworking, woodworking, and process applications. Enjoy energy savings, reduced maintenance costs, and a 10-year warranty with this reliable system.
Product Specifications
Additional Information
The Downflo® WorkStation's advantages are found in the collector's exclusive design and proprietary components. Featuring a ledgeless design in combination with proprietary Ultra-Web® filter media and ExtraLife™ cleaning technology, the DWS delivers exceptional performance in metalworking, woodworking, and process applications where high filtration efficiency and ledgeless construction is often a requirement.

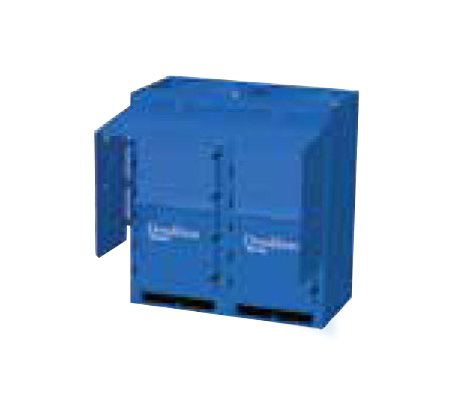

Design Options Hard Wall Acoustic Panels
135 x 90 x 90 in | 3429 x 2286 x 2286 mm
Design Options Hard Wall Galvanized Panels
135 x 90 x 90 in | 3429 x 2286 x 2286 mm
Design Options Note For Design Options
Dimensions are width x depth x height

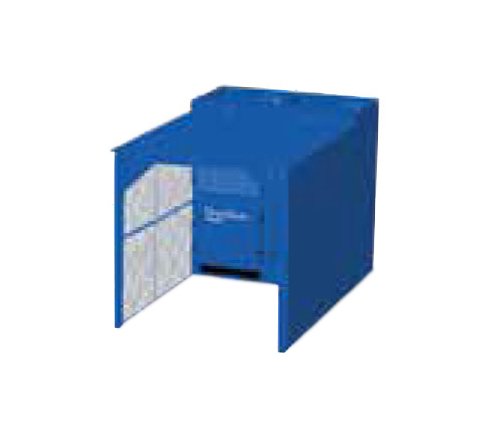

Design Options Soft Wall Acoustical Curtains
180 x 90 x 90 in | 4572 x 2286 x 2286 mm
Design Options Soft Wall Weld Curtains
180 x 90 x 90 in | 4572 x 2286 x 2286 mm

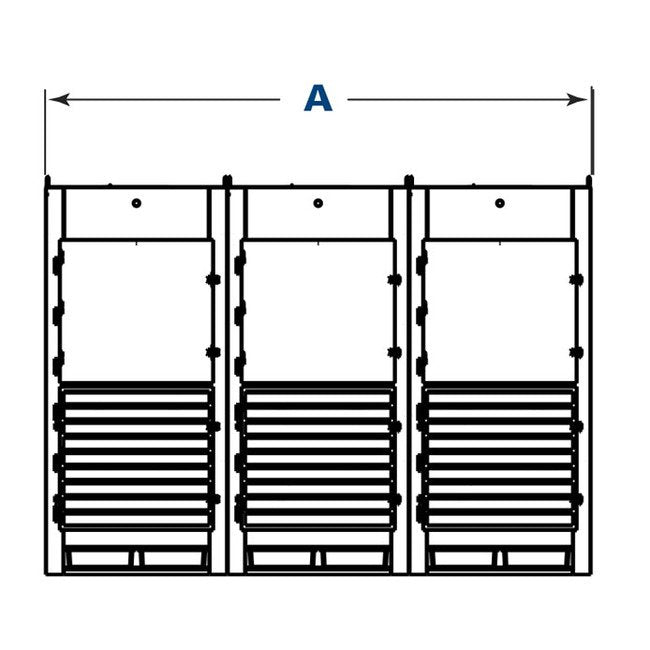

Dimensions Dimension A
135.0 in | 3429.0 mm

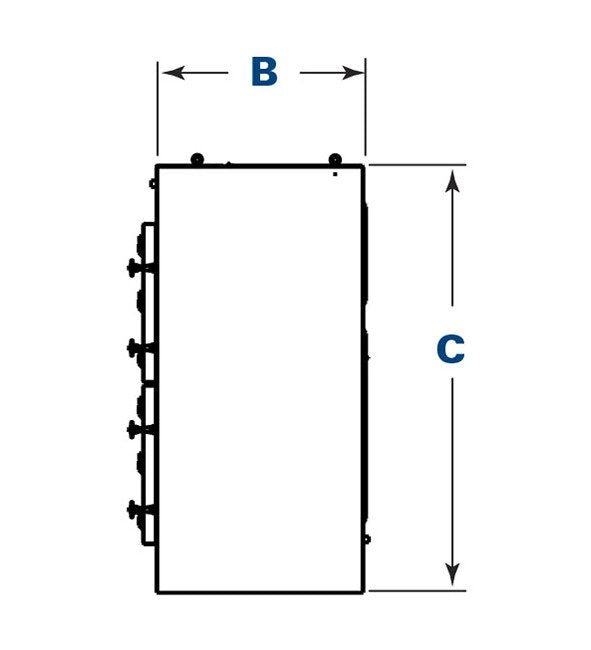

Dimensions Dimension B
47.8 in | 1214.1 mm
Dimensions Dimension C
96.0 in | 2438.4 mm
Features
Flexible, modular, self-contained workstationsProprietary Ultra-Web® cartridge filters provide cleaner air longerEasy filter access requires no toolsNo hoods or ductwork requiredEnergy savings - recirculate clean air and reduce the need for costly make-up airLedgeless construction minimizes dust build up inside the collectorReversible louver inlets
Operations
8 standard model sizesCustomized sizes availableMany options and accessories
Purpose
Most basic booth/hooding arrangementLightweight structure for use under most light conditionsLightweight structure for moderate sound controlHeavy-duty structure/smooth walls for easy washdownHeavy-duty structure for higher sound control
Specifications Nominal Airflow
16500 ft³/min | 28028 m³/h
Specifications Number Of Drawers
6
Specifications Number Of Filters
18
Specifications Number Of Modules
3
Specifications Number Of Valves
18
Specifications Shipping Weight
4050 lb | 1837 kg
Specifications Ultra Web Filter Area
3420 ft² | 317.7 m²
Specifications Warranty
10 years
