Donaldson® Torit® Dryflo® 800 CFM Mist Collector

Name: Donaldson® Torit® Dryflo® 800 CFM Mist Collector
Brand: Dust Collector Services, Inc.
SKU: DRY-e58618
Price: 3750.0 USD
Availability: OutOfStock

SKU:DRY-e58618

Enhance workplace productivity with the Donaldson® Torit® Dryflo® 800 CFM Mist Collector - efficient, easy maintenance, and mist hazard reduction.

$3,750.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Donaldson® Torit® Dryflo® 800 CFM Mist Collector is a top-tier mist filtration solution designed to reduce coolant and machining oil mists, fostering a more productive work environment. Featuring high-performance technology and a machine-mountable design, this mist collector ensures efficient mist filtration, easy maintenance, and reduced risk of mist-related hazards. With a powerful motor, three-stage filtration, and minimal worker contact with collected oil during filter changes, this collector is a reliable choice for enhancing air quality and workplace safety.

Product Specifications

Additional Information

High performance three-stage filtration improves collection efficiency at every stageProvides a cleaner work environment for maximum productivityReduces risk of mist related hazardsQuick and easy filter changes-workers have minimal contact with collected oilPredictable maintenance with a differential pressure gaugeLower plant maintenance costsMounts directly onto a machining center to collect oil, water-soluble, semi-synthetic and synthetic coolantLow profileHelps support OSHA Clean Air Standards

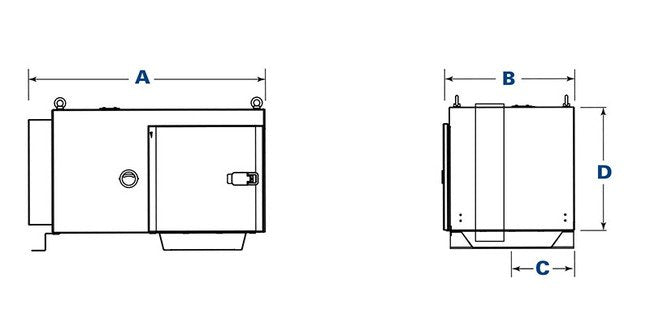

Dimensions Dimension A

39.1 in | 993.1 mm

Dimensions Dimension B

20.7 in | 525.8 mm

Dimensions Dimension C

10.4 in | 264.2 mm

Dimensions Dimension D

20.8 in | 528.3 mm

Note

Significantly improve the performance of your collector with genuine Donaldson Torit replacement filters and parts.All Rights Reserved. All products, product specifications, and data (airflow, capacity, dimensions, or availability) are subject to change without notice, and may vary by region or country. Donaldson Torit is a registered trademark of Donaldson Company, Inc. Contains Donaldson proprietary technology.

Specifications Filter Area

82 ft² | 25 m²

Specifications Motor

1.5 hp

Specifications Nominal Airflow

800 ft³/min | 1359 m³/h

Specifications Number Of Filters

Specifications Shipping Weight

165 lb | 74.8 kg

Specifications Sound Level

69 dBA

Specifications Warranty

10 years
