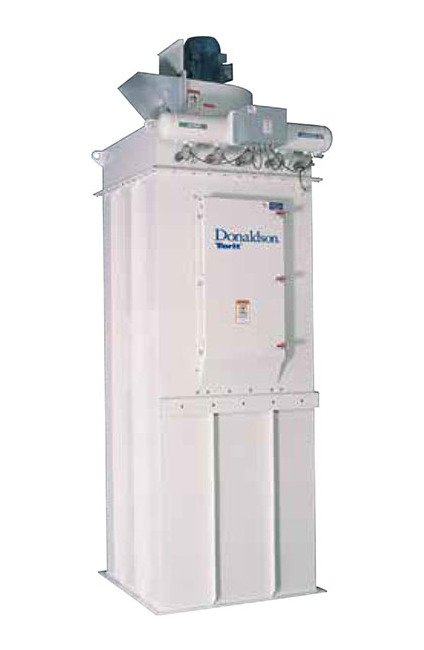

Donaldson® Torit® FS Pulse Jet 360-840 CFM Bin Ventilator
Donaldson® Torit® FS Pulse Jet 360-840 CFM Bin Ventilator
SKU:FSP-e66261
Efficient and durable Donaldson® Torit® FS Pulse Jet Bin Ventilator for dust collection and bin venting applications. Ideal for limited headroom installations.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Donaldson® Torit® FS Pulse Jet 360-840 CFM Bin Ventilator
$8,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® FS Pulse Jet 360-840 CFM Bin Ventilator
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® FS Pulse Jet 360-840 CFM Bin Ventilator offers an economical and efficient solution for dust collection and bin venting applications. Featuring a removable side bag filter design, it is ideal for installations with limited headroom. Its all-welded construction ensures durability and air/water integrity. This system includes a unique cleaning system that minimizes moisture and particulate issues in pulse valves. With an integral fan option up to 75 hp, it helps reduce space requirements, making it a cost-effective and space-saving choice for institutional and government buyers.
Product Specifications
Additional Information
Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs
Dimensions Dimension A
30 in | 762.0 mm
Dimensions Dimension B
30 in | 762.0 mm
Dimensions Dimension C
117.6 in | 2987.0 mm
Specifications Cloth Area
120 ft² | 11.1 m²
Specifications Length Of Bag Filters
8 ft | 2.4 m
Specifications Nominal Airflow
360 to 840 ft³/min | 612 to 1427 m³/h
Specifications Shipping Weight
800 lb | 362.9 kg
