Donaldson® Torit® FS Pulse Jet Bin Vent - 720 to 1680 CFM Airflow Bin Ventilator

Name: Donaldson® Torit® FS Pulse Jet Bin Vent - 720 to 1680 CFM Airflow Bin Ventilator
Brand: Dust Collector Services, Inc.
SKU: FSP-10fb44
Price: 3499.99 USD
Availability: OutOfStock

SKU:FSP-10fb44

The Donaldson® Torit® FS Pulse Jet Bin Vent - Efficient and durable solution for dust collection and bin venting applications.

$3,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

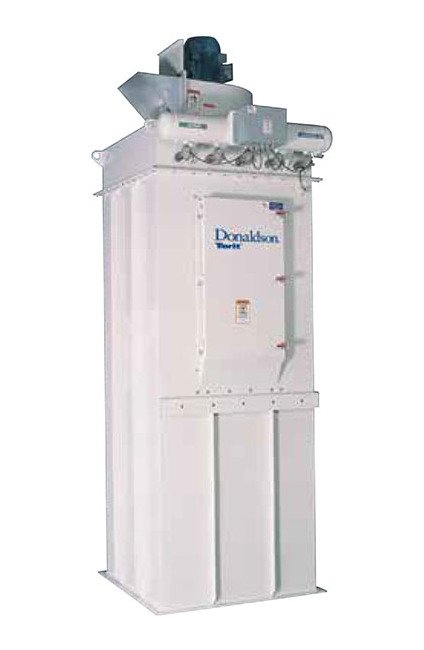

The Donaldson® Torit® FS Pulse Jet Bin Ventilator offers a cost-effective solution for dust collection and bin venting needs. Featuring a durable all-welded construction and side bag filter removal, this ventilator is ideal for low headroom applications. With an airflow ranging from 720 to 1680 cubic feet per minute, it ensures efficient air/water integrity. The unique cleaning system minimizes moisture and particulate issues while the integral fan option up to 75 hp reduces space requirements. Designed for easy installation and maintenance, this ventilator is a reliable choice for industrial settings.

Product Specifications

Additional Information

Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs

Dimensions Dimension A

54 in | 1371.6 mm

Dimensions Dimension B

54 in | 1371.6 mm

Dimensions Dimension C

69.6 in | 1767.8 mm

Specifications Cloth Area

240 ft² | 22.3 m²

Specifications Length Of Bag Filters

4 ft | 1.2 m

Specifications Nominal Airflow

720 to 1680 ft³/min | 1223 to 2854 m³/h

Specifications Shipping Weight

1200 lb | 544.3 kg

Donaldson® Torit® FS Pulse Jet Bin Vent - 720 to 1680 CFM Airflow Bin Ventilator
