Donaldson® Torit® FS Pulse Jet Bin Ventilator - 750 to 1750 ft³/min Nominal Airflow

Name: Donaldson® Torit® FS Pulse Jet Bin Ventilator - 750 to 1750 ft³/min Nominal Airflow
Brand: Dust Collector Services, Inc.
SKU: FSP-06a23d
Price: 4299.99 USD
Availability: OutOfStock

SKU:FSP-06a23d

Efficient and durable Donaldson® Torit® FS Pulse Jet Bin Ventilator for dust collection and bin venting applications.

$4,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

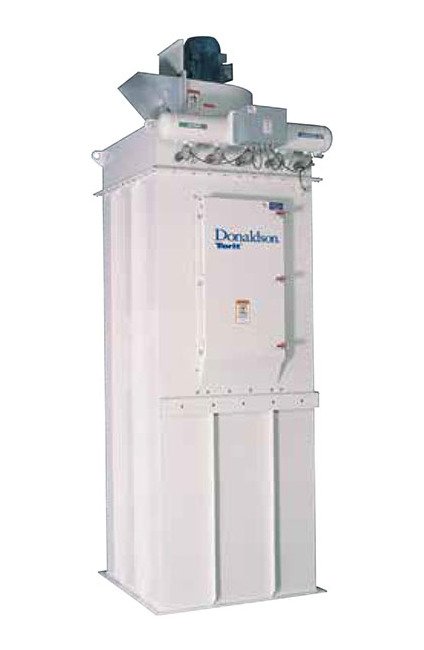

The Donaldson® Torit® FS Pulse Jet Bin Ventilator is an economical and durable solution for dust collection and bin venting applications. Featuring a side bag filter removal system, this ventilator is suitable for low headroom installations. With all-welded construction, it ensures increased durability and air/water integrity. The ventilator's integral fan option up to 75 hp reduces space requirements, while the unique cleaning system minimizes moisture and particulate issues in pulse valves. Designed for efficiency, collectors with up to 225 bag filters require minimal ducting and hopper outlet costs.

Product Specifications

Additional Information

Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs

Dimensions Dimension A

46 in | 1168.4 mm

Dimensions Dimension B

46 in | 1168.4 mm

Dimensions Dimension C

93.6 in | 2377.4 mm

Specifications Cloth Area

250 ft² | 23.2 m²

Specifications Length Of Bag Filters

6 ft | 1.8 m

Specifications Nominal Airflow

750 to 1750 ft³/min | 1274 to 2973 m³/h

Specifications Shipping Weight

1200 lb | 544.3 kg
