Donaldson® Torit® FS Pulse Jet Bin Ventilator - High Airflow Bin Vent
Donaldson® Torit® FS Pulse Jet Bin Ventilator - High Airflow Bin Vent
SKU:FSP-44037c
Efficient Donaldson® Torit® FS Pulse Jet Bin Ventilator for dust collection and bin venting applications with unique cleaning system and robust construction.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
Donaldson® Torit® FS Pulse Jet Bin Ventilator - High Airflow Bin Vent
$5,499.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® FS Pulse Jet Bin Ventilator - High Airflow Bin Vent
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

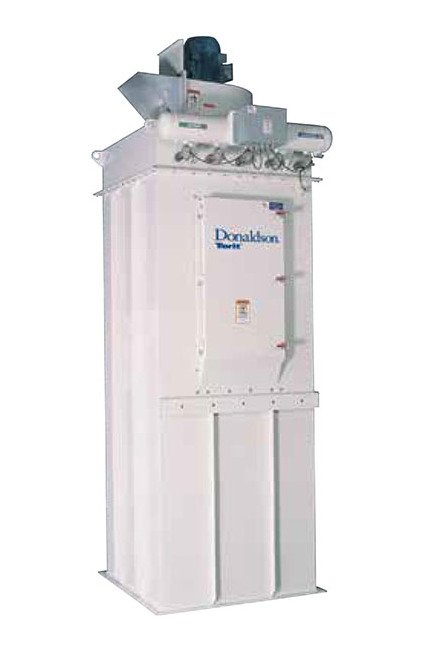

The Donaldson® Torit® FS Pulse Jet Bin Ventilator is an ideal solution for cost-effective dust collection and bin venting needs. Featuring a robust all-welded construction, this ventilator ensures durability and air/water integrity in diverse applications. With a nominal airflow range of 3198 to 7462 ft³/min, efficient cloth area of 1066 ft², and a length of bag filters at 10 ft, this ventilator offers superior performance. Moreover, the unique cleaning system minimizes moisture and particulate issues, while the integral fan option up to 75 hp reduces space requirements. Designed for ease of installation in low headroom areas, this ventilator is a reliable choice for industrial settings.
Product Specifications
Additional Information
Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs
Dimensions Dimension A
70 in | 1778.0 mm
Dimensions Dimension B
70 in | 1778.0 mm
Dimensions Dimension C
142.1 in | 3609.3 mm
Specifications Cloth Area
1066 ft² | 99.0 m²
Specifications Length Of Bag Filters
10 ft | 3 m
Specifications Nominal Airflow
3198 to 7462 ft³/min | 5432 to 12675 m³/h
Specifications Shipping Weight
2800 lb | 1270.1 kg
