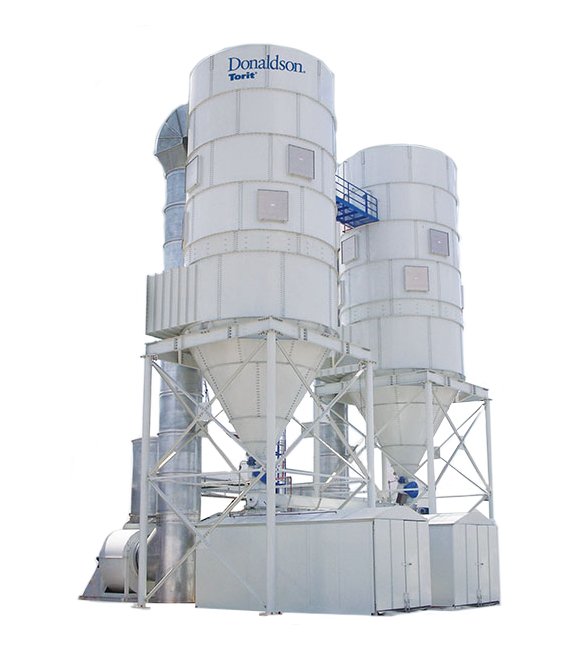

Donaldson® Torit® LP Baghouse Dust Collector - 141120 ft³/min
Donaldson® Torit® LP Baghouse Dust Collector - 141120 ft³/min
SKU:LPB-d505b3
Enhanced Donaldson® Torit® LP Baghouse Dust Collector - Unmatched performance and efficiency for institutional needs.
Regular price
$25,999.00
Regular price
Sale price
$25,999.00
Unit price
per
Initiate Order
Donaldson® Torit® LP Baghouse Dust Collector - 141120 ft³/min
$25,999.00
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® LP Baghouse Dust Collector - 141120 ft³/min
$25,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® LP Baghouse Dust Collector sets the standard for superior bag filter cleaning performance in a reverse air design. With a unique cleaning arm featuring a flow-stop plate, air is effectively prevented from re-entering bag filters post-cleaning, reducing pressure drop and energy costs. Equipped with Dura-Life™ bag filters, this collector ensures unmatched longevity and efficiency. The integrated helix in the hopper minimizes dust loading, while the LP cleaning system maintains constant airflow with minimal moving parts, ensuring easy maintenance and consistent performance. Ideal for institutions seeking top-notch dust collection capabilities.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Dimension A
269.3 in | 6840.2 mm
Dimensions Dimension B
820.8 in | 20848.3 mm
Features
Flow-stop plate cleaning arm reduces dust re-entrainmentIntegrated helix in hopper reduces dust loading on bag filtersAward winning Dura-Life™ "Twice the Life" bag filtersSingle inlet, outlet and hopper reduces ducting and hopper outlet costsLP cleaning provides a constant process airflow and fewer moving parts, which reduces maintenance and disruptions to system airflowLP cleaning system requires no compressed airOptional live bottom hopper grinds dusts to prevent bridging in hopper
Specifications Cleaning Fan
50 hp
Specifications Cloth Area
17640 ft² | 1638.8 m²
Specifications Length Of Bag Filters
12 ft² | 1.1 m²
Specifications Nominal Airflow
141120 ft³/min | 239713 m³/h
Specifications Shipping Weight
82500 lb | 37421.4 kg
