Donaldson® Torit® LP Baghouse Dust Collector - 17280 CFM Nominal Airflow
Donaldson® Torit® LP Baghouse Dust Collector - 17280 CFM Nominal Airflow
SKU:LPB-0bc570
Achieve unmatched dust collection efficiency with the Donaldson® Torit® LP Baghouse. Superior cleaning performance, lower energy costs, and longevity with Dura-Life™ 'Twice the Life' filters.
Regular price
$12,599.99
Regular price
Sale price
$12,599.99
Unit price
per
Initiate Order
Donaldson® Torit® LP Baghouse Dust Collector - 17280 CFM Nominal Airflow
$12,599.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® LP Baghouse Dust Collector - 17280 CFM Nominal Airflow
$12,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® LP Baghouse Dust Collector stands out with its superior cleaning performance in a reverse air design. Equipped with a unique cleaning arm featuring a flow-stop plate, this collector prevents re-entrainment of dust onto adjacent bags, ensuring lower pressure drop and reduced energy costs. With Dura-Life™ 'Twice the Life' bag filters as standard, it surpasses other reverse air collectors in the market. Integrated features like the helix in the hopper and optional live bottom hopper enhance efficiency and prevent dust issues. Perfect for industrial applications demanding high performance and energy efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

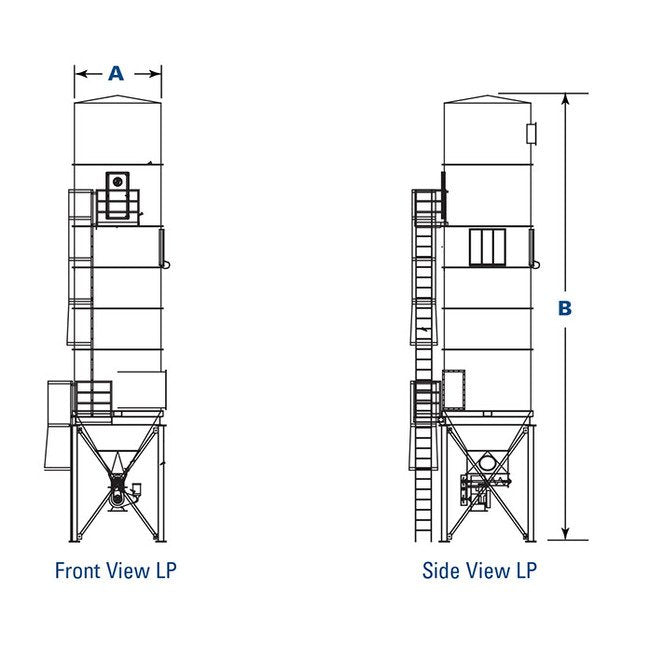

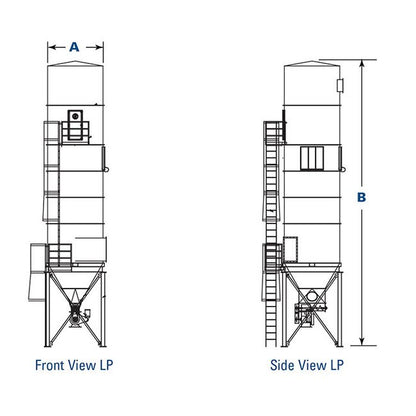

Dimensions Dimension A
101.3 in | 2573 mm
Dimensions Dimension B
526.8 in | 13380.7 mm
Features
Flow-stop plate cleaning arm reduces dust re-entrainmentIntegrated helix in hopper reduces dust loading on bag filtersAward winning Dura-Life™ "Twice the Life" bag filtersSingle inlet, outlet and hopper reduces ducting and hopper outlet costsLP cleaning provides a constant process airflow and fewer moving parts, which reduces maintenance and disruptions to system airflowLP cleaning system requires no compressed airOptional live bottom hopper grinds dusts to prevent bridging in hopper
Specifications Cleaning Fan
10 hp
Specifications Cloth Area
2160 ft² | 200.7 m²
Specifications Length Of Bag Filters
12 ft² | 1.1 m²
Specifications Nominal Airflow
17280 ft³/min | 29353 m³/h
Specifications Shipping Weight
14000 lb | 6350.3 kg
