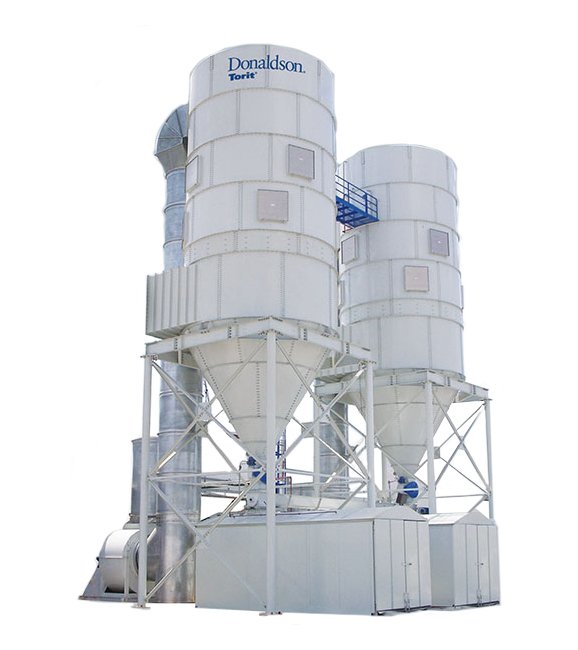

Donaldson® Torit® LP Baghouse Dust Collector - 20000 ft³/min Airflow
Donaldson® Torit® LP Baghouse Dust Collector - 20000 ft³/min Airflow
SKU:LPB-b2ab13
Enhanced Donaldson® Torit® LP Baghouse Dust Collector with flow-stop plate cleaning arm and Dura-Life™ filters for superior dust control.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Donaldson® Torit® LP Baghouse Dust Collector - 20000 ft³/min Airflow
$18,999.00
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® LP Baghouse Dust Collector - 20000 ft³/min Airflow
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® LP Baghouse Dust Collector sets a new standard in industrial air filtration. With a unique cleaning arm featuring a flow-stop plate, this reverse air design ensures optimal bag filter performance by minimizing re-entrainment of dust onto adjacent filters. Equipped with Dura-Life™ 'Twice the Life' bag filters, this collector enhances operational efficiency, reduces pressure drop, and cuts energy costs. Designed for longevity and cost-effectiveness, it boasts integrated features like a helix in the hopper and an LP cleaning system that maintains constant airflow with minimal maintenance requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Dimension A
116.5 in | 2959.1 mm
Dimensions Dimension B
485.6 in | 12334.2 mm
Features
Flow-stop plate cleaning arm reduces dust re-entrainmentIntegrated helix in hopper reduces dust loading on bag filtersAward winning Dura-Life™ "Twice the Life" bag filtersSingle inlet, outlet and hopper reduces ducting and hopper outlet costsLP cleaning provides a constant process airflow and fewer moving parts, which reduces maintenance and disruptions to system airflowLP cleaning system requires no compressed airOptional live bottom hopper grinds dusts to prevent bridging in hopper
Specifications Cleaning Fan
10 hp
Specifications Cloth Area
2500 ft² | 232.3 m²
Specifications Length Of Bag Filters
10 ft² | 0.9 m²
Specifications Nominal Airflow
20000 ft³/min | 33973 m³/h
Specifications Shipping Weight
13500 lb | 6123.5 kg
