Donaldson® Torit® MBT Modular Baghouse Dust Collector - 866 ft²
Donaldson® Torit® MBT Modular Baghouse Dust Collector - 866 ft²
SKU:MOD-6d362b
Efficient Donaldson® Torit® MBT Dust Collector - Dura-Life™ filters, reduced emissions, easy maintenance
Regular price
$16,499.99
Regular price
Sale price
$16,499.99
Unit price
per
Initiate Order
Donaldson® Torit® MBT Modular Baghouse Dust Collector - 866 ft²
$16,499.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® MBT Modular Baghouse Dust Collector - 866 ft²
$16,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® MBT Modular Baghouse Dust Collector offers unparalleled efficiency and continuous-duty performance with its Dura-Life™ bag filters. With a bag cloth area of 866 ft² and advanced features like Ultra-Web® SB Pleated Bag option, this dust collector ensures longer bag life, reduced emissions, and easy maintenance. Designed for optimal airflow and minimal abrasion, it is a reliable solution for institutions requiring high-performance air filtration systems.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

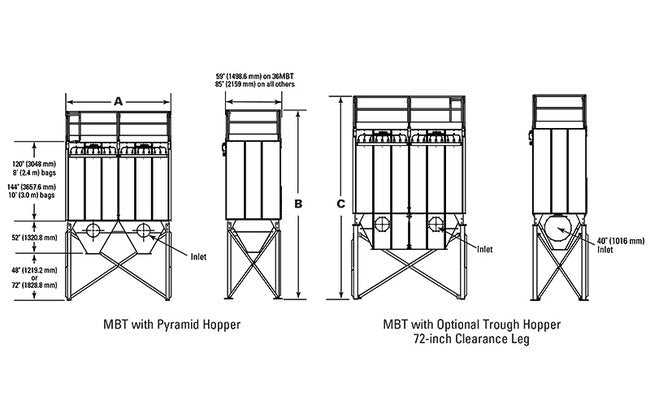

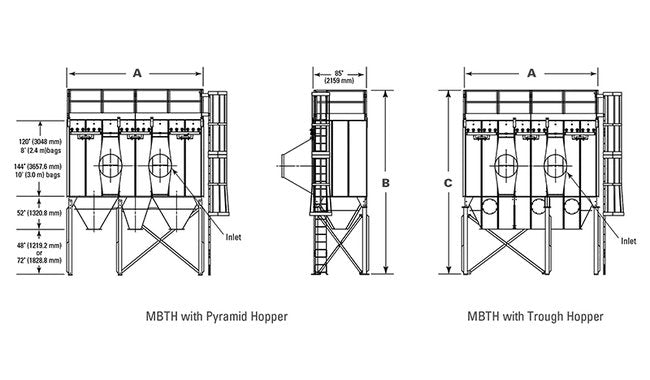

Dimensions Dimension A Mbtmbw
85.0 in | 2159.0 mm
Dimensions Dimension B Mbt 48 In
292.1 in | 7419.3 mm
Dimensions Dimension B Mbt 72 In
316.1 in | 8028.9 mm
Dimensions Dimension D Mbt 48 In
342.1 in | 8689.3 mm
Dimensions Dimension D Mbt 72 In
366.1 in | 9298.9 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
866 ft² | 80.5 m²
Specifications Number Of Bags
54
Specifications Number Of Valves
6
Specifications Plated Bag Media Area 20 Inch In Uw
637 ft² | 59.2 m²
Specifications Plated Bag Media Area 40 Inch In Uw
1274 ft² | 118.4 m²
Specifications Plated Bag Media Area 60 Inch In Uw
1912 ft² | 177.6 m²
Specifications Plated Bag Media Area 80 Inch In Uw
2554 ft² | 237.3 m²
Specifications Shipping Weight
6565 lb | 2977.8 kg
Specifications Warranty
10 years
