Donaldson® Torit® Modular Baghouse 1383 ft² Dust Collector
Donaldson® Torit® Modular Baghouse 1383 ft² Dust Collector
SKU:MOD-0f0d0e
Efficient and reliable dust collector with Dura-Life™ bags for longer life & reduced emissions.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Donaldson® Torit® Modular Baghouse 1383 ft² Dust Collector
$8,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Modular Baghouse 1383 ft² Dust Collector
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Modular Baghouse 1383 ft² Dust Collector offers a reliable and efficient solution for continuous-duty operation. Featuring breakthrough Dura-Life™ bag filters, this dust collector ensures longer bag life and reduced emissions. With high body inlet models for optimal airflow, weld design for durability, and advanced valves for efficient cleaning, this baghouse provides exceptional value. The inclusion of Ultra-Web® Spunbond Pleated Bags further enhances filtration efficiency and longevity, making it an ideal choice for institutional and government procurement needs.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

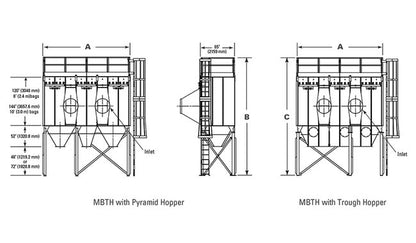

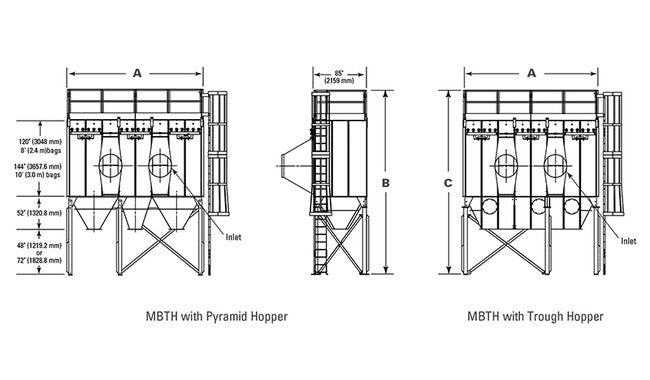

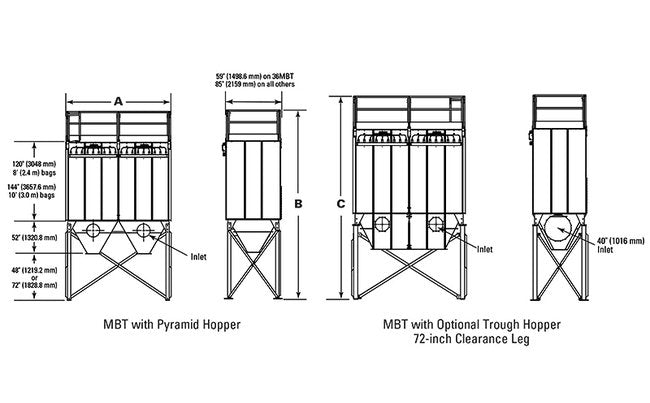

Dimensions Dimension A Mbtmbw
137.0 in | 3479.8 mm
Dimensions Dimension B Mbt 48 In
268.2 in | 6812.3 mm
Dimensions Dimension B Mbt 72 In
292.2 in | 7421.9 mm
Dimensions Dimension D Mbt 48 In
294.1 in | 7470.1 mm
Dimensions Dimension D Mbt 72 In
318.1 in | 8079.7 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
1383 ft² | 128.5 m²
Specifications Number Of Bags
108
Specifications Number Of Valves
12
Specifications Plated Bag Media Area 20 Inch In Uw
1274 ft² | 118.4 m²
Specifications Plated Bag Media Area 40 Inch In Uw
2549 ft² | 236.8 m²
Specifications Plated Bag Media Area 60 Inch In Uw
3823 ft² | 355.2 m²
Specifications Plated Bag Media Area 80 Inch In Uw
5108 ft² | 474.6 m²
Specifications Shipping Weight
8480 lb | 3846.5 kg
Specifications Warranty
10 years
