Donaldson® Torit® Modular Baghouse MBT 1730 ft² Dust Collector
Donaldson® Torit® Modular Baghouse MBT 1730 ft² Dust Collector
SKU:MOD-3ea57f
Reliable Donaldson® Torit® Modular Baghouse MBT 1730 ft² Dust Collector with Dura-Life™ bag filters for efficient and continuous operation.
Regular price
$14,999.99
Regular price
Sale price
$14,999.99
Unit price
per
Initiate Order
Donaldson® Torit® Modular Baghouse MBT 1730 ft² Dust Collector
$14,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Modular Baghouse MBT 1730 ft² Dust Collector
$14,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Modular Baghouse MBT 1730 ft² Dust Collector is a cutting-edge solution designed for reliable and efficient dust filtration in industrial settings. Featuring Dura-Life™ bag filters with extended lifespan and reduced emissions, this dust collector offers continuous-duty pulse-jet operation for optimal performance. With 10 years warranty, 108 bags, and 12 valves, this unit ensures longevity and minimal maintenance. Its innovative design includes Ultra-Web® SB Pleated Bag Option, tool-free installation, and clean air bag access for easier service, making it ideal for institutional and government procurement requirements.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

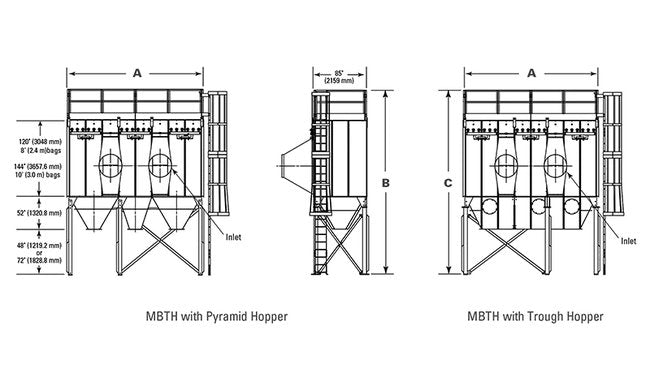

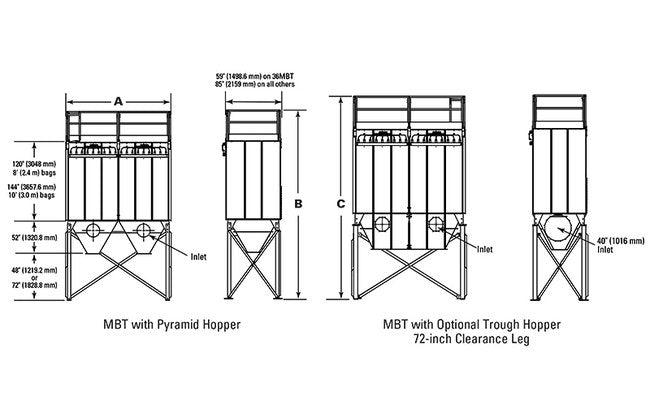

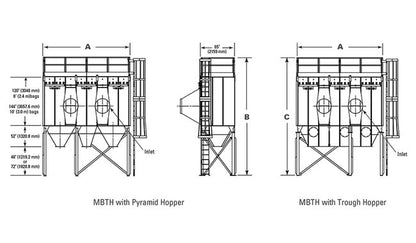

Dimensions Dimension A Mbtmbw
137.0 in | 3479.8 mm
Dimensions Dimension B Mbt 48 In
292.2 in | 7421.9 mm
Dimensions Dimension B Mbt 72 In
316.2 in | 8031.5 mm
Dimensions Dimension D Mbt 48 In
342.1 in | 8689.3 mm
Dimensions Dimension D Mbt 72 In
366.1 in | 9298.9 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
1730 ft² | 160.7 m²
Specifications Number Of Bags
108
Specifications Number Of Valves
12
Specifications Plated Bag Media Area 20 Inch In Uw
1274 ft² | 118.4 m²
Specifications Plated Bag Media Area 40 Inch In Uw
2549 ft² | 236.8 m²
Specifications Plated Bag Media Area 60 Inch In Uw
3823 ft² | 355.2 m²
Specifications Plated Bag Media Area 80 Inch In Uw
5108 ft² | 474.6 m²
Specifications Shipping Weight
9320 lb | 4227.5 kg
Specifications Warranty
10 years
