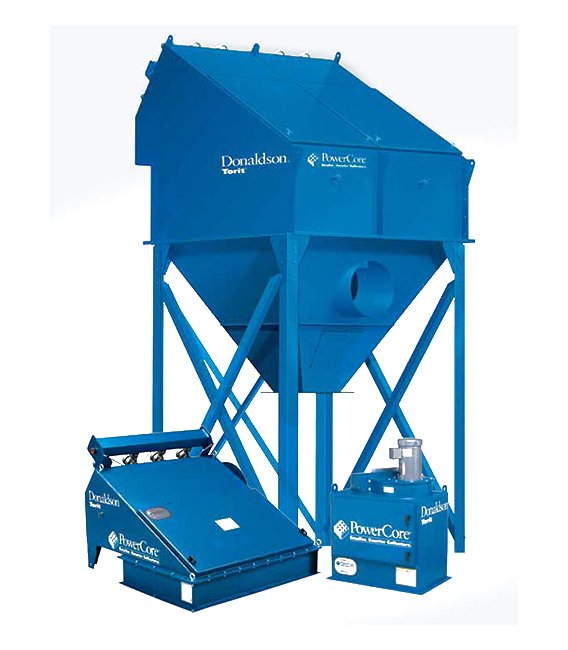

Donaldson® Torit® PowerCore® CP Series 174.0 Inch Dust Collector
Donaldson® Torit® PowerCore® CP Series 174.0 Inch Dust Collector
SKU:TOR-d1a734
Experience groundbreaking dust collection efficiency with the Donaldson® Torit® PowerCore® CP Series 174.0 Inch Dust Collector.
Regular price
$9,999.99
Regular price
Sale price
$9,999.99
Unit price
per
Initiate Order
Donaldson® Torit® PowerCore® CP Series 174.0 Inch Dust Collector
$9,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® PowerCore® CP Series 174.0 Inch Dust Collector
$9,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® PowerCore® CP Series 174.0 Inch Dust Collector revolutionizes dust collection with its compact and efficient design. Featuring advanced PowerCore® technology, this unit offers exceptional filter area in a smaller space, equivalent to 6 traditional filter bags. The Ultra-Web® nanofiber filter media ensures superior filtration performance. With a nominal airflow range of 11200 to 22000 ft³/min, 32 filter packs, and a sturdy housing, this dust collector is ideal for high-demand industrial settings.
Product Specifications
Dimensions Dimension A
174.0 in | 4419.6 mm
Dimensions Dimension B
169.2 in | 4297.7 mm
Dimensions Dimension C
85.0 in | 2159.0 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12, 16, 24, 32, 40, 48.
Dimensions Note For Dimension C
Standard hoppers.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
-20 inwg
Specifications Nominal Airflow
11200 to 22000 ft³/min | 19025 to 37370 m³/h
Specifications Number Of Filter Packs
32
Specifications Number Of Valves
32
Specifications Powercore Filter Area
2016 ft² | 187.3 m²
Specifications Shipping Weight
5310 lb | 2408.6 kg
