Donaldson® Torit® PowerCore® CP Series Dust Collector
Donaldson® Torit® PowerCore® CP Series Dust Collector
SKU:TOR-b562f4
Enhanced Donaldson® Torit® PowerCore® CP Series Dust Collector: Efficient, Compact, Proven Performance
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Donaldson® Torit® PowerCore® CP Series Dust Collector
$5,899.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® PowerCore® CP Series Dust Collector
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

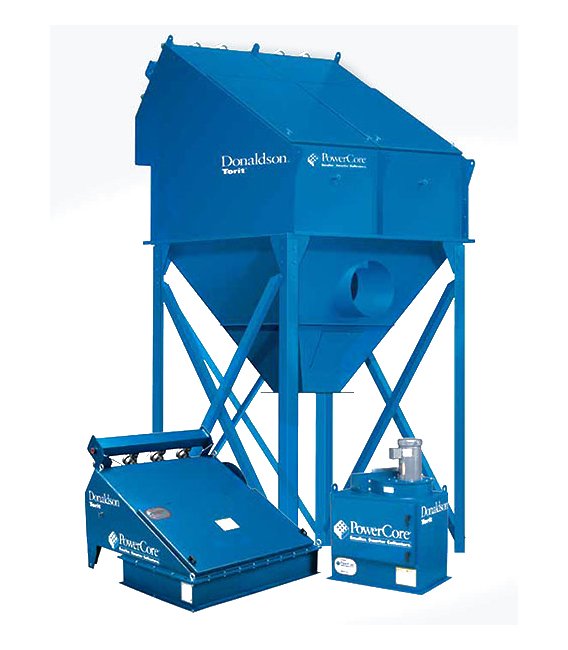

Experience superior dust collection with the Donaldson® Torit® PowerCore® CP Series Dust Collector. Featuring innovative PowerCore® technology, this compact unit offers unmatched filter area efficiency, with one PowerCore® filter pack equating to six traditional filter bags. Benefit from the proven Ultra-Web® nanofiber filter media for exceptional performance. With a nominal airflow of 4200 to 8200 ft³/min, 12 filter packs, and a PowerCore® filter area of 756 ft², this dust collector ensures reliable operation and ease of maintenance.
Product Specifications

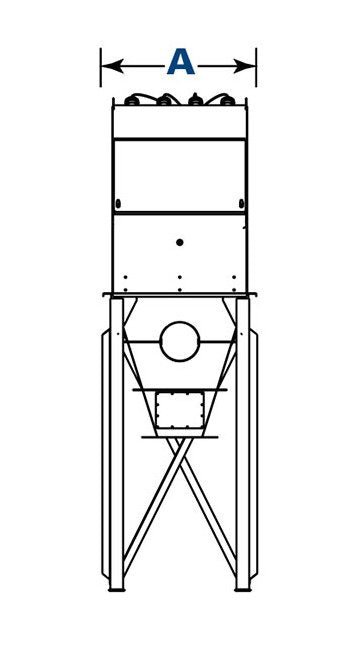

Dimensions Dimension A
70 in | 1778.0 mm

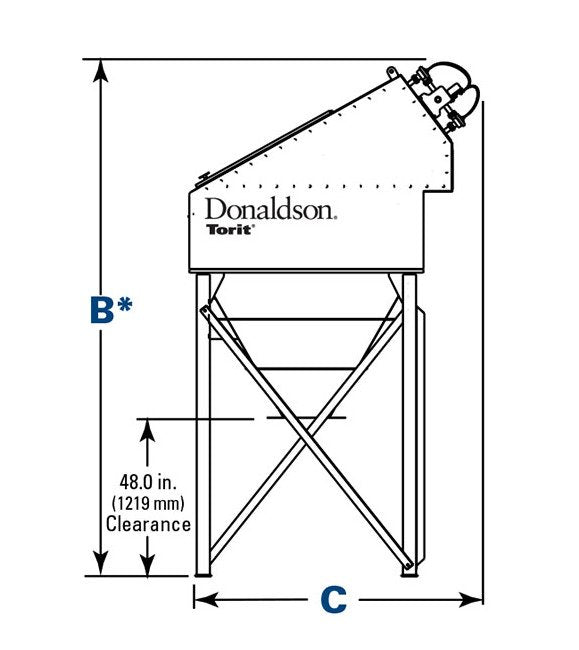

Dimensions Dimension B
154.2 in | 3916.7 mm
Dimensions Dimension C
85.0 in | 2159.0 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12, 16, 24, 32, 40, 48.
Dimensions Note For Dimension C
Standard hoppers.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
-20 inwg
Specifications Nominal Airflow
4200 to 8200 ft³/min | 7134 to 13929 m³/h
Specifications Number Of Filter Packs
12
Specifications Number Of Valves
12
Specifications Powercore Filter Area
756 ft² | 70.2 m²
Specifications Shipping Weight
2100 lb | 952.5 kg
