Donaldson® Torit® PowerCore® CP Series Dust Collector - 36.8" x 37.2"
Donaldson® Torit® PowerCore® CP Series Dust Collector - 36.8" x 37.2"
SKU:TOR-4234b7
Compact & efficient Torit® PowerCore® CP Series Dust Collector - ideal for industrial settings, meeting federal procurement standards.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
Donaldson® Torit® PowerCore® CP Series Dust Collector - 36.8" x 37.2"
$3,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® PowerCore® CP Series Dust Collector - 36.8" x 37.2"
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

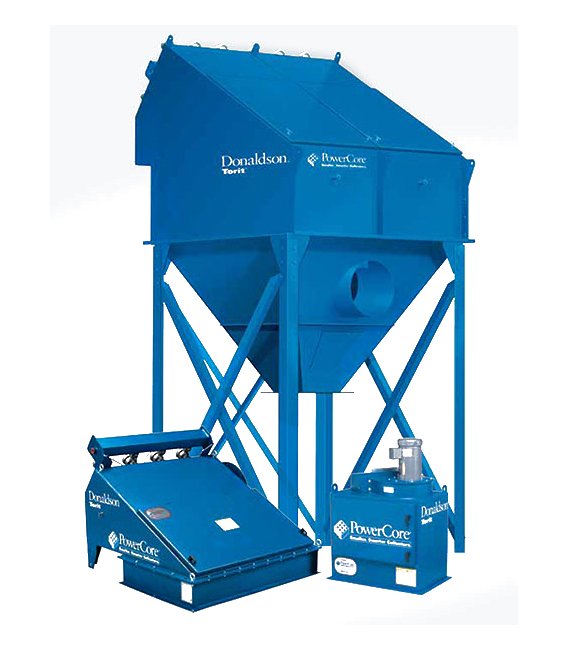

The Donaldson® Torit® PowerCore® CP Series Dust Collector revolutionizes dust collection with its compact yet powerful design. Featuring Donaldson®'s innovative PowerCore® technology, this unit offers exceptional filter efficiency in a smaller footprint. With a Nominal Airflow ranging from 700 to 2000 ft³/min, it boasts 189 ft² of PowerCore® Filter Area, ensuring superior filtration performance. The unit's robust build, advanced Ultra-Web® nanofiber filter media, and ease of handling make it ideal for industrial environments. Compliant with federal procurement standards and industry-specific certifications, this dust collector is a reliable solution for both commercial and governmental applications.
Product Specifications

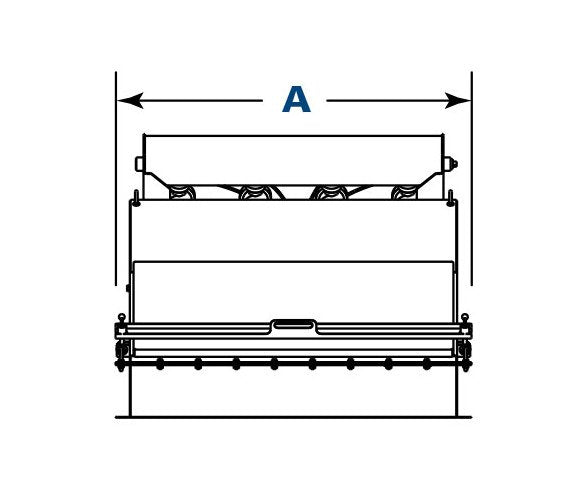

Dimensions Dimension A
36.8 in | 934.7 mm

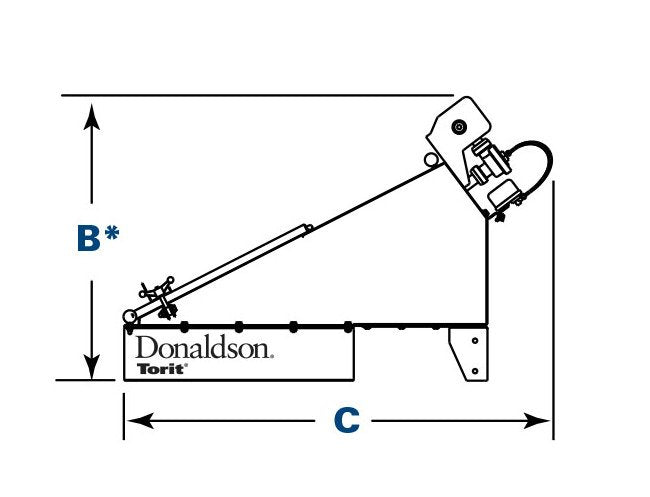

Dimensions Dimension B
37.2 in | 944.9 mm
Dimensions Dimension C
47.7 in | 1211.6 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 2, 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
20 inwg
Specifications Nominal Airflow
700 to 2000 ft³/min | 1189 to 3397 m³/h
Specifications Number Of Filter Packs
3
Specifications Number Of Valves
3
Specifications Powercore Filter Area
189 ft² | 17.6 m²
Specifications Shipping Weight
375 lb | 170.1 kg
